-180 Degree Wide view
-8MP, 4K, 3840×1080@30fps
-4x 1/1.8′ Sony CMOS, 4x Lens
-H.265/H.264, ONVIF, Slink protocol
-Intelligent analysis, WDR, ANR, Alarm in/output, Audio in/output, RS485, TF Card Slot
-DC12V, PoE, IP67

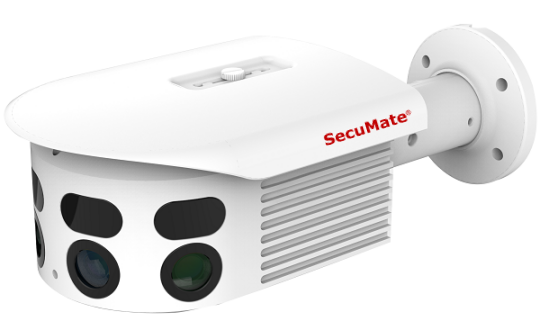

Professional 8MP Network 180 Degree 4 Lens Stitched Panoramic Bullet Camera
Model: SE-WH8VF30
*Max resolution 8MP(3840*1920@ 30fps)
*Support low bit rate, low delay and ROI enhance coding
*H. 265 high effective compression, save bandwidth and storage space
*Support multi-line OSD, OSD color can be adjusted
*Support Smart IR, prevent IR overexposure at night
*ICR infrared filter plate automatic switch, achieve real D/N monitoring
*Support PoE (optional)
*Support Micro SD card (128G) local storage
*Support 3D digital N/R,DWDR
*Support auto electronic shutter function, adapt different monitoring environment
*Support bidirectional talk
*Support 1CH alarm input / 1CH alarm output
*Support Slink, Onvif access
*Support Email, FTP, NTP
*Support HTTPS encryption transmission
*Original equipment boot to modify password, ensure password security
| Model | SE-WH8VF30 |
| Image sensor | 4*1/1.8″ Sony 2MP Progressive Scan CMOS |
| Min.illumination | 0Lux( IR on), Color: 0.002Lux/F1.4, B/W0.0005Lux/F1.4 |
| IR distance | 4*IR TBD |
| Day/ Night | ICR switch, auto, color, B/W, exit |
| Lens | 4mm |
| Output | PAL/NTSC adjustable |
| WDR | DWDR (Off/ Low/ Middle/ High) |
| Light board control | Auto/ Manual/ Off |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| ENCODING | |
| Video compression | H.265/ H.264 |
| H.265/H.264 Encoding | Main Profile /BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: Main stream: 3840X1920@30fps, Sub stream 720P / D1@30fps, Third stream:1920X1080; |
| PAL: Main stream 3840X1920@25fps, Sub stream 720P / D1@25fps, Third stream:1920X1080 | |
| Max. Resolution | 3840*1920 |
| Video bit rate | Constant bit rate, variable bit rate（32Kbps~16Mbps） |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Support input/output volume gain control |
| ROI | Support 4 zones, multi-stage level |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
| Access protocol | ONVIF, Slink Protocol |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 4 |
| User permission | User add/modify/delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | Target Counting, Area Detection, Left/Lost, Line Crossing |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support, match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| INTERFACE | |
| Network Interface | RJ45 10M/ 100M/ 1000M network adaptive |
| Audio | Line Input/Output |
| Alarm input | 2CH |
| Alarm output | 1CH |
| Reset | Support |
| RS485 | Support |
| TF card | Support Max 128G, Micro SD(SDHC /SDXC) card local-storage |
| GENERAL | |
| Operating temperature | -20°C ~ 60°C |
| Operating humidity | 0﹪-90﹪ |
| Protection grade | IP66 |
| Power supply | DC12V /PoE optional |
| PoE | Support |
| Power consumption (max) | <15W |

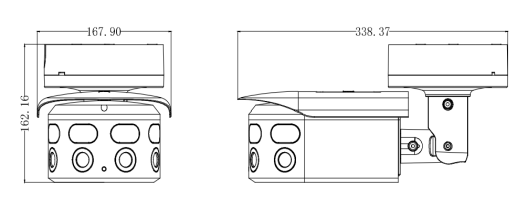

| Dimensions(mm) | 338.37mm(L)*167.9mm(W)*162.16(H) |
