-180 Degree Wide view
-3MP, 2304×1296, Dual lens
-Dual Lights 30m
-Smart H.265/H.265/H.264, ONVIF, Slink protocol, Human detection
-Microphone and Speaker
-DC12V, PoE, IP66

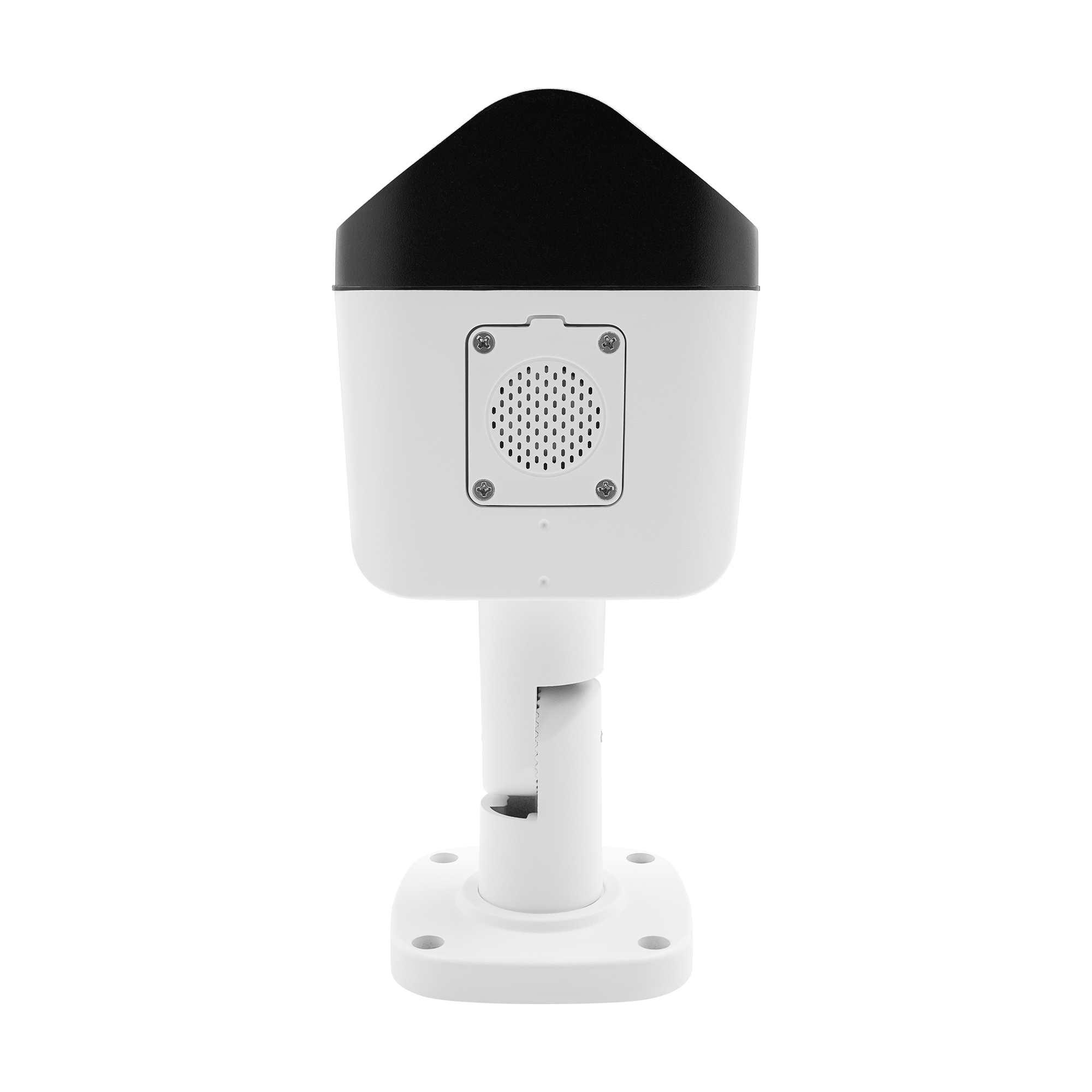

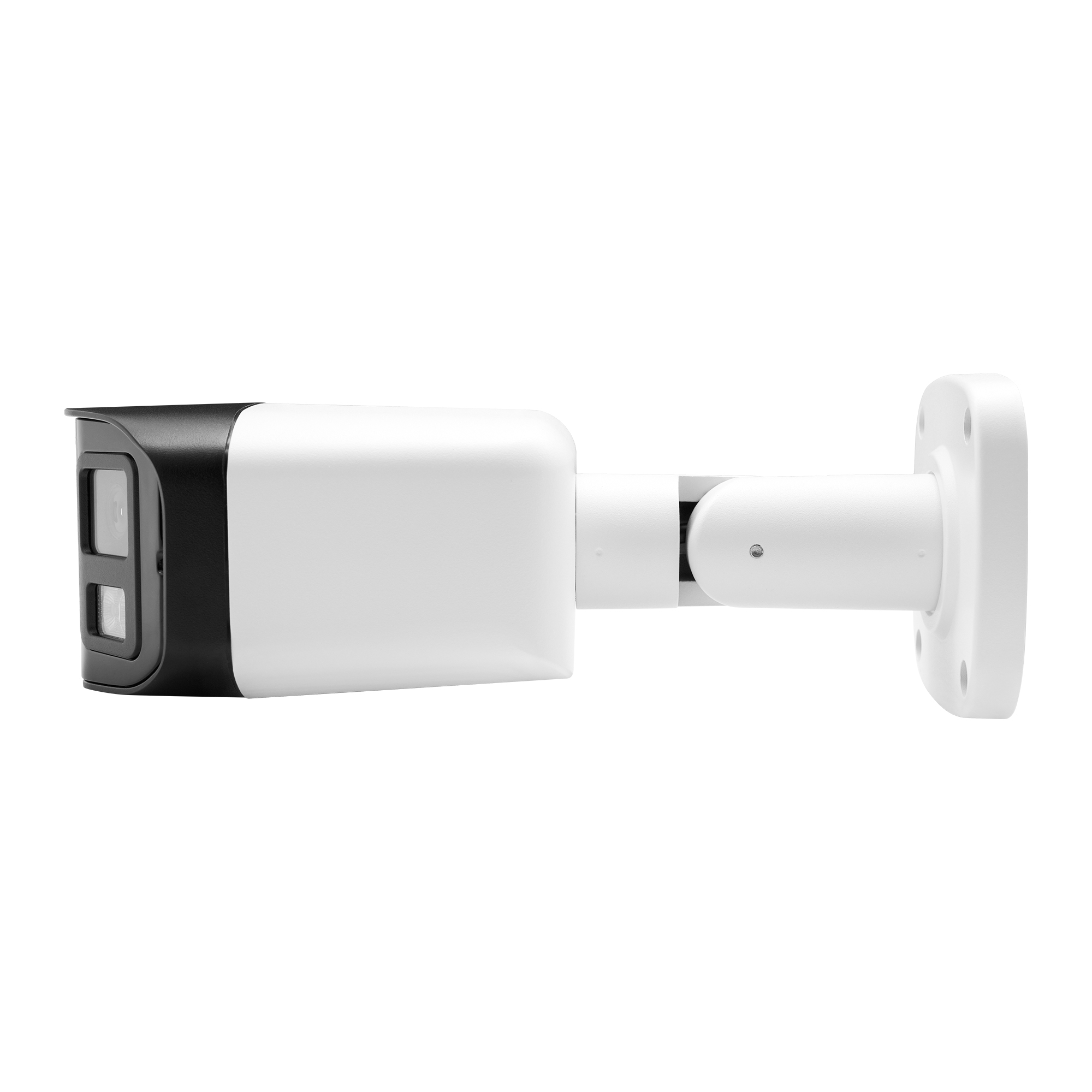

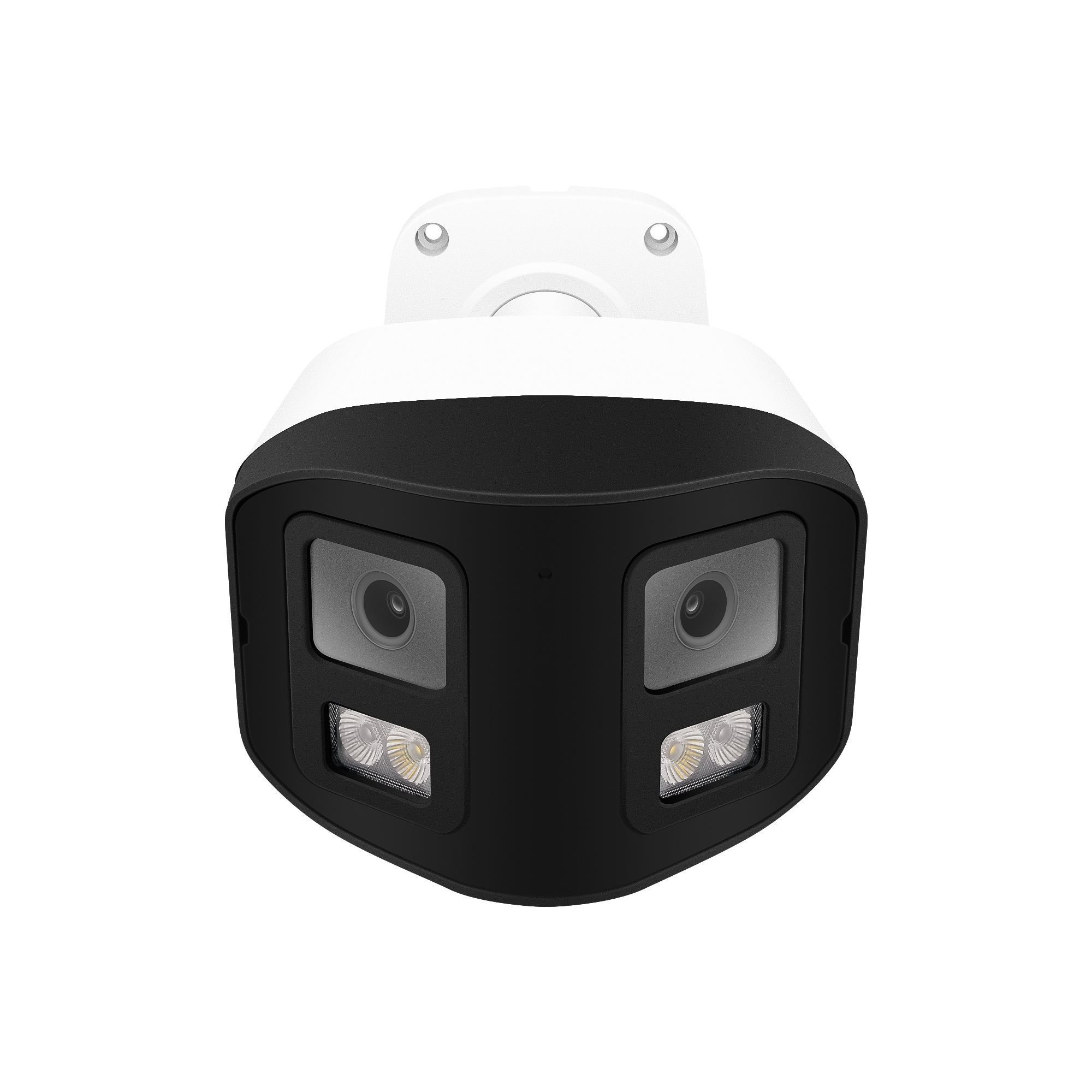

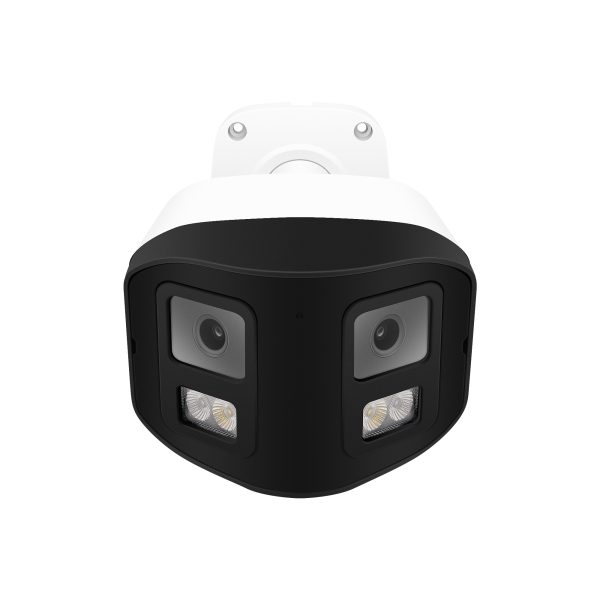

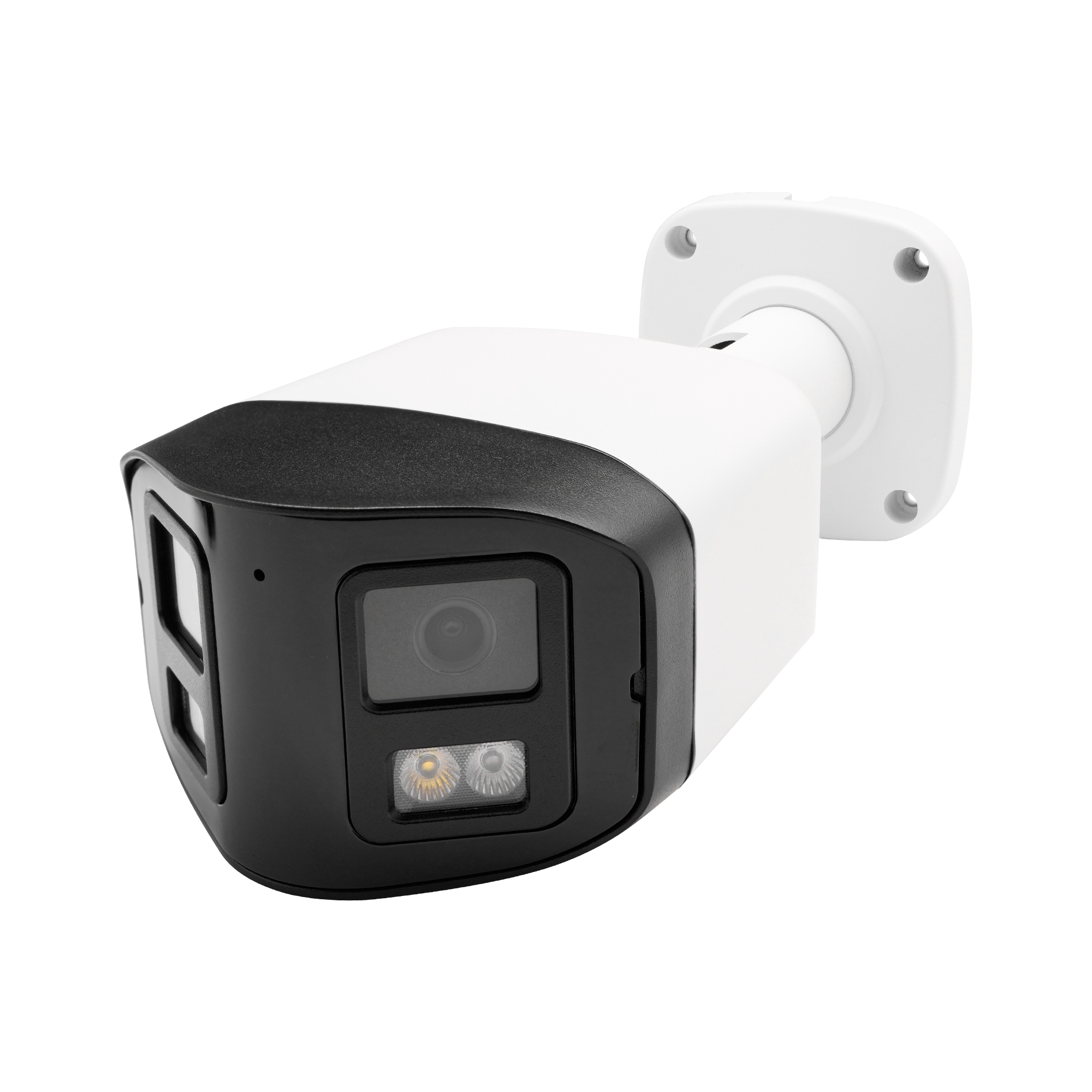

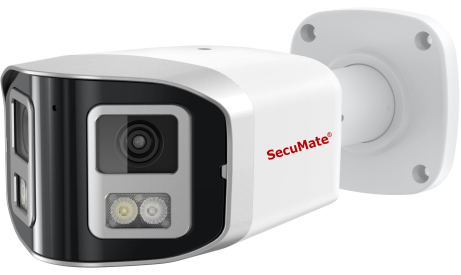

3MP 180 Degree Panoramic Dual Lens Full Color Network Bullet Camera
Model: SE-WH3SF40
1/2.9″ CMOS sensor
3MP wide-view resolution 2304×1296
180° wide angle view
2 pcs Warm light + 2 pcs IR led distance 20-30 meters
2x 3.6mm lens
Low illumination 0.01Lux, Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, Digital WDR, Mirror , Defogging
Multiply Style OSD Overlay, Motion Detection, Privacy Mask
RTSP and ONVIF 17.06 compatible with many third-party NVR
Smart H.265/H.265/H.264 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
Built-in Mic and speaker two-way audio
| Camera | |
| Image Sensor | 2x 1/2.9″ Megapixel CMOS |
| Effective Pixels | 3 megapixels |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON) |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC /HLC | Support |
| DNR | 2D/3D DNR |
| Other | AGC, Motion Detection, Privacy Mask, Flip, OSD overlay |
| Encode | |
| Video Standard | H.264/H.265/H.265+ |
| Video Resolution | Main Stream: 2304x 1296@25fps, Sub stream: D1@25fps |
| Video Bit rate | 512Kbps – 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Yes |
| Built-in Speaker | Yes Two-way audio |
| Smart Detection | Human Detection |
| Dual Lights | |
| Led | 2x warm-light Led + 2x IR Led |
| Distance | 20-30m |
| Lens | |
| Focal length | F1.6 3.6 mm fixed lens |
| FOV | 180° |
| Other Function | |
| PoE，Reset, SD-Slot | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 10 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
