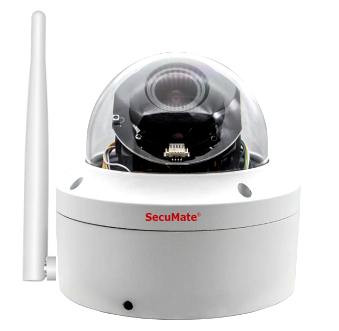

-Wi-Fi Outdoor PTZ Dome IP Camera
-Max.resolution 3MP, 5x Optical Zoom lens, IR 30m
-Support Pan 355°/Tilt 90°
-Two-way audio, built-in Speaker and Microphone, TF Card Slot(Max 512G)
-ONVIF, Slink, Human detection, Motion detection and Auto Tracking
-Remote monitoring APP
-IP66, Vandalproof
3MP WiFi Network Human Detection 30m PTZ Vandal proof Dome Camera
MODEL: SE-WF-EM3VD66M
-WiFi 3MP Outdoor Vandal proof Dome Network Camera
-Support Pan 355°, Tilt 90°
-IEEE802 11b/g/n, 2.4GHz-2.835GHz
-1/2.9″ Megapixel CMOS
-Up to 2304×1296(3MP)@20fps, 1920×1080@25fps
-2.7-13.5mm Motorized lens(5x Optical zoom)
-IR distance 25-30m
-H.265/H.264, ONVIF, Slink, Human detection, Motion detection and Auto Tracking
-Two-way audio, Built in Microphone and Speaker
-Support TF Card slot up to 512GB
-IP66, Metal housing
-DC12V/2A
| Wi-Fi Standard | |
| Wi-Fi Protocol Standard | IEEE 802.11B/G/N |
| Frequency Range | 2.402GHz -2.4835Ghz |
| Channel Bandwidth | 20/40MHZ |
| Safety Control | WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Distance | 100 meters in maximum(without obstacles) |
| Antenna | External 5dB antenna (SMA socket) |
| Camera | |
| Sensor | 1/2.9″ Progressive Scan CMOS |
| Lens | 2.7-13.5mm Motorized |
| Lens interface | M12 |
| Focal Length & FOV | Horizontal FOV 108.1(W)-30.3(T)°, Vertical FOV 56.3(W)-17.1(T)°, Diagonal FOV 130.9(W)-34.8(T)° |
| Min. Illumination | Color: 0.005Lux/F1.6, AGC ON, B/W: 0Lux(IR LED ON) |
| Electronic shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Custom |
| IR distance | 25-30m |
| D-WDR | D-WDR (off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast, Sharpness, Saturation, Chroma |
| Humanoid Detection | |
| Detection Quantity | ≤5 people humanoid |
| Humanoid Size | Humanoid Pixel≥40X40 |
| Detection Ratio | ≥99%（meet above requirement） |
| Capture Speed | ≤1s |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Detection Part | People with any posture including half body, head, hand, shoulder |
| Track People | Support |
| Detection Mode | Support static and dynamic humanoid detection |
| Detection method | Support visible light image detection, and near infrared image detection |
| Detection Area | Appointed area, default full-screen |
| Upload Method | Upload it under private protocol |
| Trigger Method | Video trigger |
| Audio & Video Encoding | |
| Video Encode Standard | S.265/H.265/H.264 |
| Encoding Feature | Main stream: 3MP 2304×1296@20fps, 2MP 1920×1080@25fps |
| Sub stream:D1(720*576),VGA(640*360) | |
| Video Code Rate | Fixed code rate, variable code rate(Main stream code：160Kbps-4000kbps） |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u / 64Kbps |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Connection Protocol | ONVIF, SLINK |
| Preview Video Quantity | 5 pcs |
| Security Mode | Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Capture, email |
| Anomaly Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Character Overlay | Title, time and date overlay, multi-line OSD, OSD color is optional |
| Port | |
| Network Port | RJ45 10M/100M network self-adjustable |
| Antenna Interface | 1 SMA( include a 5dB Antenna) |
| Reset Key | Support |
| TF Card slot | Support, max 512G, Micro SD(SDHC /SDXC) card local-storage |
| Audio | Microphone, Speaker |
| General | |
| Power Supply | DC12V, 2A, 6W in Max. |
| Protection | IP66, Vandal proof |
| Size | 123.00(D)×117.50(L)mm |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0﹪~90﹪ |
