-1/2.7″ Progressive scan CMOS, up to 8MP (3840 × 2160) @ 25/30 fps
-36x optical zoom, f=4.5 – 162mm
-Intelligent analytic: Area intrusion, Absent alarm, Loitering, Line crossing detection, Vehicle illegal parking
-10x High power IR leds, up to 180m
-Audio in/output, Alarm in/output, SD Card slot
-Electric Wiper
-Onvif, Slink private protocol
-IP67 waterproof, PoE, DC12V

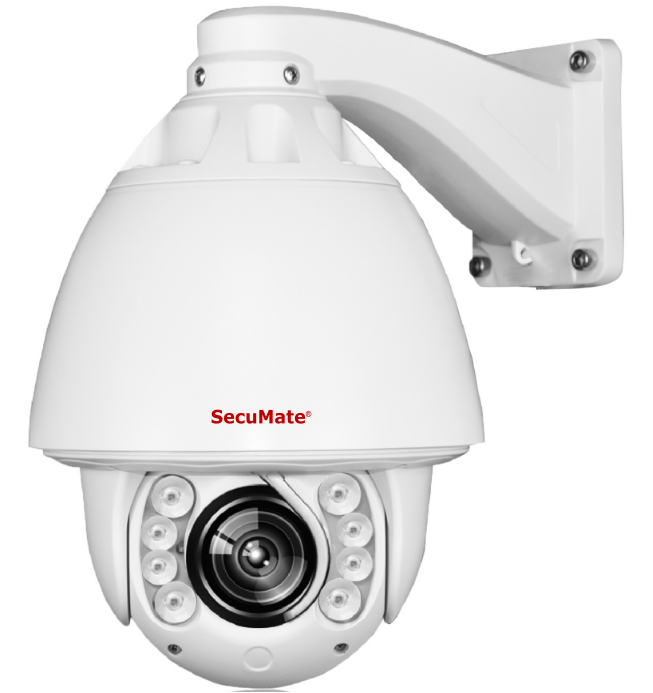

8MP Smart 36x Zoom Network High Speed PTZ Dome Camera
Model: SE-HSQ8D80-F36
| Model | SE-HSQ8D80-F36 |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Max Resolution | 8MP, 3840(H) × 2160(V) |
| Shutter Speed | 1/2.5 to 1/30,000s |
| Min Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), |
| B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with illuminator on | |
| Day & Night | Auto (ICR) |
| S/N Ratio | 55 dB |
| Lens | |
| Focal Length | 4.5 to 162 mm |
| Max. Aperture | F1.6 to F2.7 |
| Field of View (FOV) | H: 55.40° to 2.9°, V: 48.5° to 3.5° |
| Optical Zoom | 36x |
| Digital Zoom | / |
| Iris | Auto / Manual |
| Focus Control | Auto / Manual / Semi-automatic |
| Illuminator | |
| Type | 10x High power Leds, 4 near+6 far |
| IR wavelength | 850 nm |
| Distance | IR distance up to 180 m |
| Intelligent Analytics | |
| Smart features | Line crossing detection, Area intrusion, Absent alarm, Loitering detection, Vehicle illegal parking |
| Video & Audio | |
| Number of Streams | 2 Streams |
| Resolution | Stream 1: 3840 × 2160, 2592 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720 Stream 2: D1, VGA, CIF |
| Frame Rate | Up to 25/30 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream 1: 200 Kbps to 8 Mbps |
| Stream 2: 100 Kbps to 1 Mbps | |
| Audio Compression | G.711 A-law, G.711 μ-law, |
| Audio Bit Rate | 64 kbps (G.711) |
| Image | |
| Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
| Scene Mode | Indoor, Outdoor, Mirror |
| Exposure Mode | Auto, Manual, Shutter priority |
| White Balance | Auto, Warm light, Nature light, Fluorescent, Custom |
| Day/Night Setting | Auto, Day mode, Night mode |
| Noise Reduction | 2D/3D DNR |
| Image Enhancement | Backlight, AGC, Shutter |
| Privacy Masking | Up to 4 privacy zones |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless, Tilt: -10° to +90° (auto-flip) |
| Pan Speed | Pan speed: 0.1° to 360°/s, preset speed: 360°/s |
| Tilt Speed | Tilt speed: 0.1° to 120°/s, preset speed: 80°/s |
| Preset Accuracy | ≤ 0.2° |
| Preset | 256 |
| Cruise | 8x |
| Scan | 8x |
| Pattern | 4x |
| Intelligent Tracking | Human/Vehicle auto tracking |
| Power-Off Memory | Supported |
| Idle Motion | preset, cruise, pattern, scan |
| Event | |
| Alarm Triggers | IMS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
| Event Actions | Alarm record, FTP upload, Email notification, Snapshot |
| Network | |
| Protocols | IPV4, HTTP/HTTPS, DDNS, DHCP, RTSP/ RTMP, TCP/UDP, NTP, FTP, Multicast |
| Application Programming Interface | ONVIF (Profile S/T/G/M), SDK, API, Slink |
| Max Concurrent Streams | 4 channels |
| Web Viewer | Chrome, Firefox, Microsoft Edge, IE11 or earlier |
| Interface | |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet port |
| Audio Interface | 1ch input, 1ch output |
| Alarm Interface | 1ch input, 1ch output |
| SD Card Slot | Built-in micro SD card slot (up to 512G) |
| Reset Button | Supported |
| General | |
| Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Arabic, Hungarian, Japanese, Korean. Default: English |
| Power Supply | 12V DC / PoE (802.3af) |
| Power Consumption | 20 W |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | < 95% RH, non-condensing |
| Waterproof | IP67 |
| Material | Aluminum alloy housing |

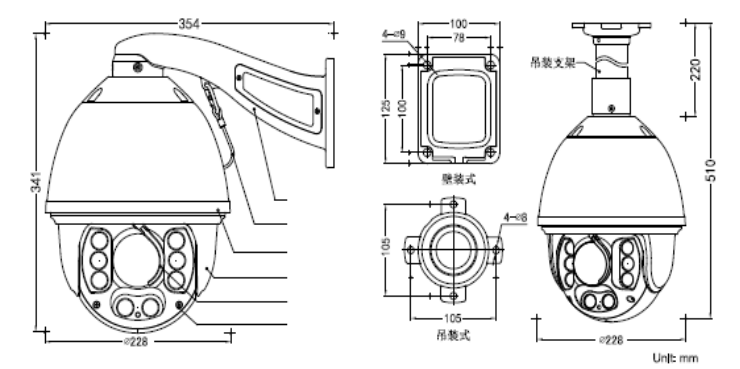

| Dimensions | 510(H)x228(W)x mm |
| Net Weight | Approx. 5.7 kg |
