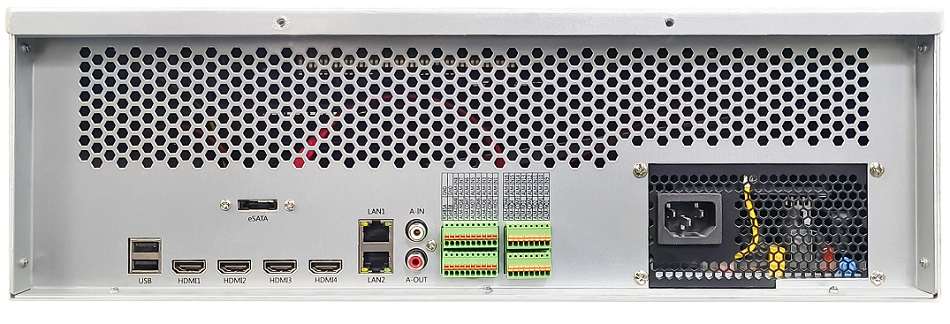

-Up to 196ch IP cameras inputs, 3U Case
-Up to 1-ch@8K or 4-ch@12mp or 9-ch@8mp or 16ch@5MP or 25ch@3MP or 128-ch@D1 decoding capacity
-4 HDMI video output, maximum resolution of HDMI is 8K
-16x SATA hard disk up to 16TB, 1 eSATA
-16ch Alarm input/8ch Alarm output
-2x RJ45 1000M network interface
-Incoming bandwidth 800M
-Smart search and playback, Support cloud upgrade

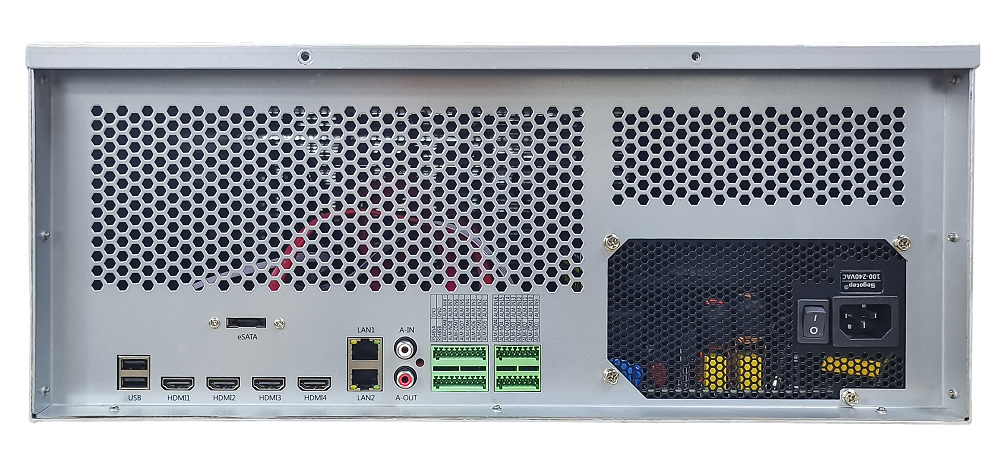

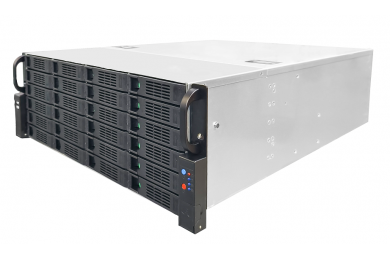

*Up to 196ch IP cameras access, 4U Case
*4x HDMI output:
Mode 1: 1x HDMI output(128ch preview+16ch playback), go to another page for the rest 68ch preview
Mode 2: 2x HDMI output(100ch +100ch preview+16ch playback)
Mode 3: 4x HDMI output(49ch+49ch+49ch+49ch preview+49ch playback)
*Up to 1-ch@8K or 4-ch@12MP or 9-ch@8MP or 16-ch@5MP or 25-ch@3MP or 128-ch@D1 decoding capacity
*4 HDMI ports simultaneous video output, maximum resolution of HDMI is 8K
*24 SATA hard disk up to 16TB each, 1 eSATA port
*16ch Alarm input/8ch Alarm output
*2 RJ45 1000M network interface
*Smart analysis: human detection, line crossing, retrograde detection, absent detection, loitering detection, area intrusion, illegal vehicle parking.
*Electronic amplification on preview and playback image
*Support to add IP camera manually or automatically in LAN
*Support channel group cruise
*Smart recording search & playback, alarm capture picture search
*Support USB disk and cloud upgrade, support to upgrade IP camera by USB disk
*Raid 0, 1, 5, 6, 10
*IPSAN, NAS, Hot-swap hard disk
*Support to configure and maintain IP camera under slink protocol, such as setup up IPC specification, factory reset IP camera, enable or disable all network function of camera
*Support email notification on alarm events
*Support ANR function(need front IP camera support TF card storage)
*Support broadcast function
| Video Input | |
| IP Camera Input | 196 Channel |
| Incoming Bandwidth | 800 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Output | |
| HDMI Output | 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1024×768 |
| Decoding Capacity | 1ch 8K, 4ch 12MP, 9ch 8MP, 16ch 5MP, 25ch 2MP, 64ch D1 |
| Dual Stream | Support |
| Multi-screen Display | 1/4/6/8/9/10/16/25/36/64/128 |
| 1 HDMI Output | 128ch(8K) Preview, change another page for the rests 68 channels preview |
| 2 HDMI Output | 100ch(8K) +100ch(4K) Preview |
| 4 HDMI Output | 49ch(4K)+49ch(4K)+49ch(4K)+49ch(1080P) Preview |
| Recording | |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 1.3MP |
| Recording Mode | Timing, Alarm, Timing and Alarm, Alarm include, Smart detection |
| Trigger Events | Motion Detection, Video Loss, Smart detection, Human detection |
| Playback and Backup | |
| Sync Playback | 1ch 12MP, 4ch 4K, 16ch 2MP |
| Search Mode | Smart Search, Time /Date, Alarm, Smart detection |
| Playback Mode | Normal, Motion, Alarm input, Smart detection |
| Backup Mode | USB Device, Network |
| Network | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, RTMP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, PPPoE |
| Remote Users | 35 users |
| Smart Phone | iPhone, iPad, Android, IMS Lite, IMS 4.0 |
| Interoperability | SLINK, ONVIF, SDK |
| Interface | |
| Network Interface | 2 RJ-45 (1000 Mbps) self-adaptive Ethernet port |
| PoE | / |
| Audio I/O | HDMI audio output, 1ch Audio input/output |
| Alarm | 16ch input/ 8ch output |
| USB | 3 ports (USB 2.0 × 3) |
| HDMI | 4 |
| VGA | / |
| RS485 | 1 |
| Buzzer | Yes, buzzer alarm |
| Storage | |
| HDD | 24 x SATA, up to 16TB each |
| eSATA | 1 port |
| General | |
| Power Supply | AC100-240V, 750W |
| Power Consumption | < 650 W |
| Operating Conditions | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Storage Conditions | Less than 90% RH |
| Certifications | CE/FCC |
| Dimensions | 431.5 × 600 × 177.5 mm |
| Net Weight | 28 kg without HDD |
