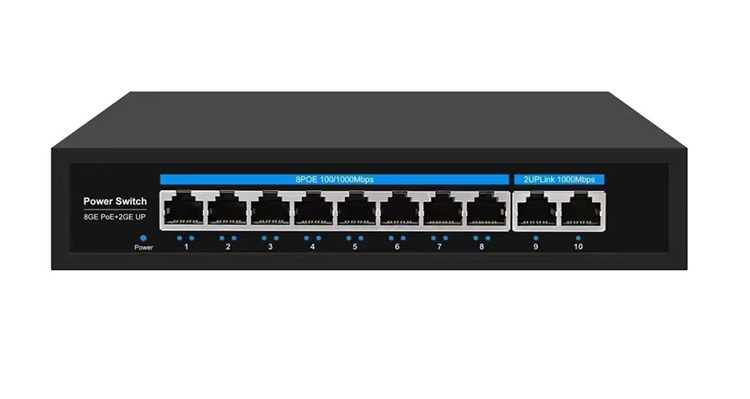

SE-G8002GE

8 Port PoE Network Switch

8x100M(PoE)+2xGE(UP-Link)

Product Characteristics

8 1000M PoE ports + 2x 1000M uplink network ports

Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards

Ethernet port supports 10/100M adaptive

The PoE port automatically turns on the AI mode in VLAN and Extend modes.

Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard Support automatic port flipping (Auto MDI/MDIX)

Zero-configuration feature, automatically provisioned to adaptive devices

Panel indicators monitor working status and help fault analysis

Comes with three-position one-button smart DIP switch, supporting three modes: VLAN, Normal, and Extend.

Support port lightning protection surge: common mode 4KV; electrostatic ESD: air 8KV, contact 6KV

Port	1000M PoE	8
	1000M Cascade RJ45	2
Function	Storage and Forwarding	Support
	Exchange Content	1.6G
	MACAddress	2K
Use Environment		Working temperature: 0 ℃~ 40 ℃， Storage temperature: -40 ℃~ 70 ℃
Use Environment		Working humidity: 10 ~ 90%RH does not condenseStorage humidity: 5%~90%RH does not condense
PoE Standard		Standard IEEE802.3af/at single port maximum power 30WSupport overcurrent, overvoltage, short-circuit protectionSupport for High Power PD soft startSupport sequential boot
Input Power Supply		AC input 110-220V, 50/60HZ
Supported Standards & Protocols		IEEE 802.3 Ethernet Media access Control Protocol IEEE 802.3i 10BASE-T EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3afimplements power supply for Ethernet devices through Ethernet data cable pairs or devicesIEEE 802.3atimplements high power supply for Ethernet devices through Ethernet data cable pairs or devicesIEEE 802.3x flow control
System Mode		OFF (Default working mode)ON (AI mode)
Data Signaling Rate		Ethernet 10Mbps half-duplex, 20Mbps full duplexFast Ethernet 100Mbps half-duplex, 200Mbps full duplex
Network Medium		100Base-TX: 2 pairsCat5 or more UTP/STP (≤ 100m)10Base-TX: 2 pairs Cat5or more UTP/STP (≤ 250m)
Physical Specification		Product size: 190mm140mm43mm (LWH)
