-Outdoor Network PTZ Vandal-proof Dome Camera
-Max.resolution 6MP(3072×2048), 5x Optical Zoom lens, IR 50m
-WDR
-Support Pan 355°/Tilt 90°
-Two-way audio, built-in Microphone and Speaker
-ONVIF, Slink, VCA smart function, Human detection, Motion detection
-12V DC, PoE, IP67, Vandal proof

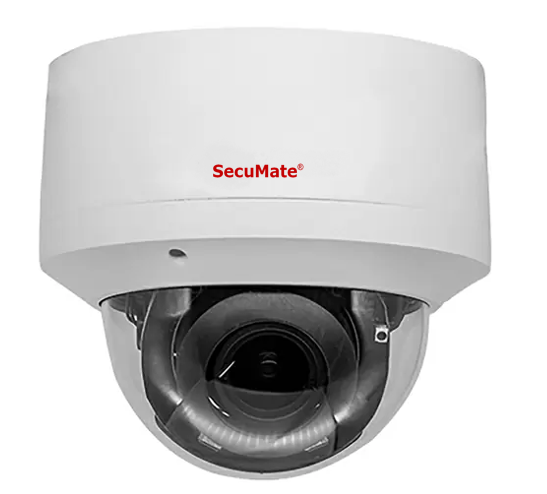

6MP Network VCA 50m IR Mini PTZ Vandal proof Dome Camera
MODEL: SE-FS6PVD66M
‘-Outdoor Network PTZ Vandal-proof Dome Camera
-Support Pan 0~355°, Tilt 0~90°
-1/2.7″ Progressive scanl CMOS
-Up to 6MP 3072×2048@25fps
-2.7-13.5mm Motorized lens(5x Optical zoom)-IR distance 40-50m
-WDR
-H.265/H.264, ONVIF, Slink, VCA smart function, Human detection, Motion detection
-Two-way audio, Built in Microphone and Speaker
-IP67, Vandal proof
-12V DC, PoE
| Camera | |
| Sensor | 1/2.9″ Progressive scan CMOS |
| Lens | 2.7-13.5mm Motorized (5x Optical Zoom) |
| Lens interface | M14 |
| Focal Length & FOV | Horizontal FOV 108.1(W)-30.3(T)°, Vertical FOV 56.3(W) -17.1(T)°, Diagonal FOV 130.9(W)-34.8(T)° |
| Min. Illumination | Color: 0.005Lux/F1.6, AGC ON, B/W: 0Lux(IR LED ON) |
| Electronic shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Custom |
| IR distance | 40-50m |
| WDR | WDR (off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma |
| VCA | |
| Area Intrusion | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Line-crossing Detection | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection line, supports detection directions: A->B | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, motor vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Wandering/Loitering | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support wandering time setting(10~3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Absent Alarm | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support absent time setting(10-3600S) | |
| Support at least 1-3 people on duty | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Illegal Parking | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support illegal parking time setting(10-3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Retrograding | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 4 points) | |
| Support video stream overlay detection frame | |
| Supports four detection directions, detection line support B->A direction | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Audio & Video Encoding | |
| Video Encode Standard | Smart H.265/H.265/H.264 |
| Encoding Feature | Main stream: 6MP(3072*2048), 5MP(2592*1904), 4MP(2560*1440)/ 3MP(2304*1296)25fps |
| Sub stream: D1(720*576), VGA(640*480), Q720P(640*360), CIF(352*288) | |
| Video Code Rate | Fixed code rate, variable code rate(Main stream code：160Kbps-4000kbps) |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u /G.711A 64Kbps |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Connection Protocol | ONVIF, SLINK |
| Preview Video Quantity | 5 pcs |
| Security Mode | Authorized user name and password, HTTPS with password, AES connecting with password, |
| RTSP verification | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Capture, email |
| Anomaly Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Character Overlay | Title,time and date overlay, multi-line OSD, OSD color is optional |
| Port | |
| Network Port | RJ45 10M/100M network self-adjustable |
| Alarm interface | / |
| Reset Key | / |
| TF Card slot | / |
| Audio | Microphone, Speaker |
| General | |
| Power Supply | DC12V/1A, 5W in Max., PoE |
| Protection | IP67, Vandal proof |

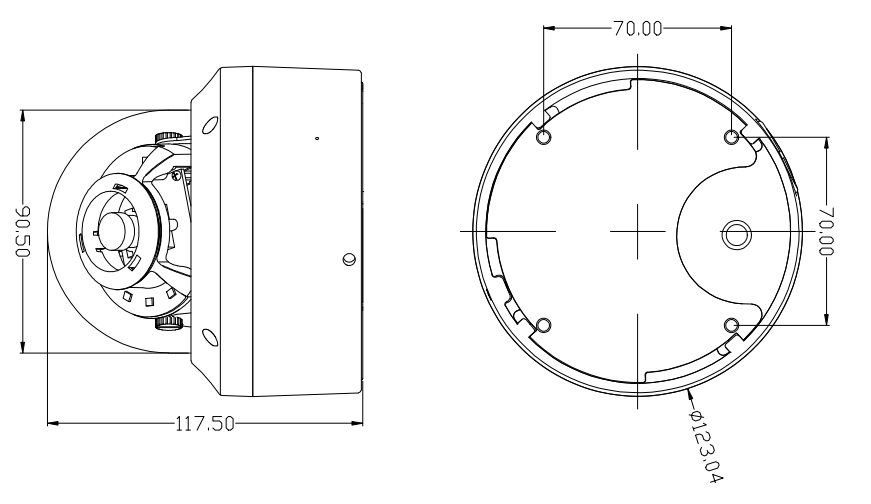

| Size | 123.00(D)×117.5(H)mm |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0﹪~90﹪ |
