‘-6MP(3072×2048)/5MP(2592×1904)/4MP(2560×1440)/3MP(2304×1296)@25fps
-VCA Smart function, Human tracking
-20x Optical Zoom, 4.7~94mm
-Dual lights: Warm lights 80m, Infrared 100m
-128 Presets, 4 cruise, scan, Park actions, Watch position
-Smart H.265/H.265/H.264, Slink, Onvif,
-Microphone and Speaker
-DC12V, PoE, IP66

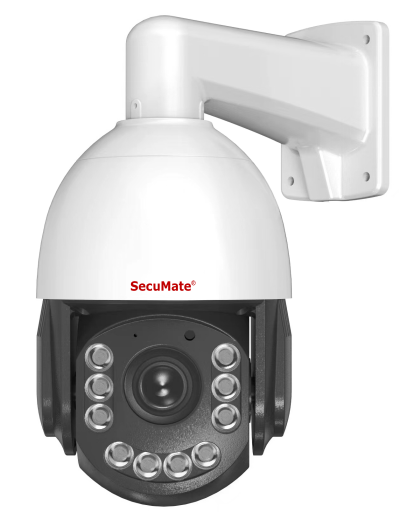

6MP Network Eco VCA Middle Speed Dual Lights Full Color 20x 6-inch PTZ Dome Camera
Model: SE-FLS6E18-F20
-1/2.7″ Progressive scan CMOS
-20x Optical zoom, f=4.7~49mm
-6MP(3072×2048)/5MP(2592×1904)/4MP(2560×1440)/3MP(2304×1296)/2MP(1920×1080)@25fps
-Smart H.265/H.265/H.264, Dual Stream, Slink, Onvif, RTSP
-Dual Lights: Warm lights 80m, Infrared 100m
-VCA Smart function, Human tracking
-Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT, DWDR, Mirror, rotate, Defogging
-Motion Detection, Privacy Mask
-P2P Cloud service, Support user authentication, video data encryption, Support Alarm Snapshot to Email and FTP
-Pan/Tilt/Zoom, 360 rotate, 90 auto flip, Horizontal Rotation Speed 0.5°～40°/s, Vertical rotation speed 0.5°～40°/s
-Support 128 presets, 4 cruise, Scanning, Parking support preset, Scan/Cruise
-Built in Microphone and Speaker
-DC12V, POE, IP66
| Camera | |
| Sensor | 1/2.7″ Progressive scan CMOS |
| Lens | 20x Optical Zoom, f=4.7~49mm |
| Lens interface | M14 |
| Focal Length & FOV | F1.6~2.7, 55.4~2.9 degree |
| Min. Illumination | Color: 0.001Lux/F1.6, AGC ON, B/W: 0Lux(IR LED ON) |
| Electronic shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Custom |
| WDR | WDR (off/low/middle/high) |
| 3DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma |
| IR Led | |
| Dual lights | 10x IR Array leds, near/middle/far three different distance IR led group |
| IR Distance | Warm lights 80m, Infrared 100m |
| Audio & Video Encoding | |
| Video Encode Standard | Smart H.265/H.265/H.264 |
| Encoding Feature | Main stream: 6MP(3072*2048), 5MP(2592*1904), 4MP(2560*1440), 3MP(2304*1296)@25fps |
| Sub stream: D1(720*576), VGA(640*480), Q720P(640*360), CIF(352*288)@25fps | |
| Video Code Rate | Fixed code rate, variable code rate(Main stream code：160Kbps-4000kbps) |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u /G.711A 64Kbps |
| PTZ Control | |
| Horizontal Range | 0°～360° continuously |
| Vertical Range | 5°～90° |
| Horizontal Speed | 0.05°～40°/s |
| Vertical Speed | 0.05°～40°/s |
| Max Speed | 40°/S |
| Preset | 128 |
| Cruise | 4 |
| Horizontal Scan | 1 |
| Park Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
| Watch position | Support |
| Wide angle speed limit | Focus / speed automatic matching function |
| Power on Action | Preset/Scan/Cruise |
| General Events | |
| Motion Detection | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support full screen / area detection | |
| Linkage setting support: upload mail/voice broadcast alarm/alarm light | |
| Obstruction Alarm | Support day arming/night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Privacy mask | Support four areas setting |
| VCA | |
| Area Intrusion | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Line-crossing Detection | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection line, supports detection directions: A->B | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, motor vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Wandering/Loitering | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support wandering time setting(10~3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Absent Alarm | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support absent time setting(10-3600S) | |
| Support at least 1-3 people on duty | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Illegal Parking | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support illegal parking time setting(10-3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Retrograding | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 4 points) | |
| Support video stream overlay detection frame | |
| Supports four detection directions, detection line support B->A direction | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP |
| Connection Protocol | ONVIF, SLINK, HIK, TST |
| Preview Video Quantity | 10PCS |
| Security Mode | Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
| Motion Detection | Setup detection area, multi-level sensitivity available to setup |
| Obstruction Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Upload email/FTP upload picture, Arming time support day arming/night arming/cutsomized arming |
| Anomaly Inspection | Support network disconnection alarm, IP conflict alarm, illegal access alarm |
| Character Overlay(OSD) | Support time OSD/Title OSD, multi-line OSD (two lines), Main stream font support 12-60pt, sub stream font support 12-36pt |
| Interface | |
| Network Port | RJ45 10M/100M network self-adjustable |
| TF Card slot | / |
| Audio input | Microphone built in |
| Audio output | Speaker |
| Alarm input | / |
| Alarm output | / |
| General | |
| Power Supply | DC12V 15W; PoE: 802.3af max. 20W |
| Protection | IP66, Metal |
| Size | / |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0%~90% |
