-1/2.7′ 5 Megapixel CMOS-2560×1920@20fps, 2560×1440@25fps-3.6mm, Dual Light up to 25 meters-H.265/H.264, ONVIF, Slink, Human detection-DC12V, PoE, Plastic-Microphone, Speaker, TF Card slot

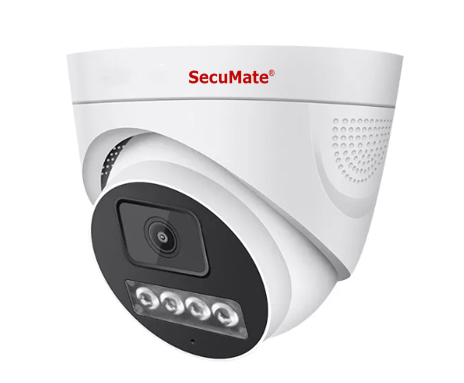

MODEL: SE-EM5WB35-MS
-1/2.7’5 Megapixel CMOS-2560×1920@20fps, 2560×1440@25fps-3.6mm/2.8mm lens optional-Dual Light up to 25m.-True Day&Night (IR Cut Removable)-H.265/H.264, ONVIF, Slink-Human detection-Digital WDR, 3D Noise Deduction, Motion Detection and Privacy zones-PoE, DC12V, Microphone, Speaker, TF Card slot
| Camera | |
| ImageSensor | 1/2.7’5MegapixelCMOS |
| Min.illumination | 0Lux(IRLedON) |
| Lens | 3.6mm |
| IRDistance | 25-30m/Dual light |
| ElectronicShutter | Auto/Manual(1/25~1/10000),FLK |
| Day/Night | ICRSwitch,Auto,Color,B/W,Ext |
| S/Nratio | ≥50db(AGCOFF) |
| Output | PAL/NTSCadjustable |
| WDR | DWDR(Off/Low/Middle/High) |
| LightBoardControl | Support |
| 3DN/R | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/Horizontal/Vertical/180ºrotation/Corridormode(90ºrotation,270ºrotation) |
| ExposureControl | Auto/Manual |
| Imagesetting | Brightness,Contrast,Saturation,Sharpness,Hue |
| Encoding | |
| Videocompression | H.265/H.264/MJPEG |
| H.265Encoding | MainProfile |
| H.264Encoding | BaseLine/MainProfile/HighProfile |
| EncodingFeatures | Mainstream:2560×1920@20fps, 2560×1440@25fps, 2048×1536@25fps, 1920×1080@25fps |
| Substream: 720×576@25fps, 640×360@25fps | |
| Max.Resolution | 2560 x 1920 |
| Videobitrate | Constantbitrate,variablebitrate(16kbps~8000kbps) |
| VideoType | Complexstream/Videostream |
| AudioCompression | G.711u |
| Audiobitrate | 64Kbps |
| AudioControl | Input volume/Output volume adjustable |
| ROI | / |
| Watermarkfunction | / |
| Network | |
| NetworkProtocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP |
| AccessProtocol | ONVIF,SLINK |
| Browser | SupportIE,Chrome,Firefox,Safari |
| Previewmeanwhile | 3 |
| UserPermission | Useradd/modify/delete,permissionmanagement |
| SafeMode | Authorizedusernameandpassword,HTTPSencryptionandAESlinkencryption |
| RTSPverification | |
| MotionDetection | Setdetectionzone,Multi-levelsensitivitycanbeset |
| TamperingAlarm | 1zone |
| PrivacyMask | 4zones |
| VCA | TargetCounting,AreaDetection,Left/Lost,LineCrossing |
| Eventlinkage | Emailsending |
| MulticastFunction | Support |
| ANR | / |
| MobileSurveillance | IOS,Android |
| Exceptiondetection | Supportnetworkdisconnected,IPconflict,illegalaccessalarm |
| OSD | Title,timeanddateoverlay,multi-lineOSD,OSDcolor/sizecanbecustomized |
| DST | Support |
| Snapshot | Supportsnapshot,snapshotresolutionisencodingresolution |
| Systemupdate | Supportremoteupdate |
| Interface | |
| NetworkInterface | RJ4510M/100Mnetworkadaptive |
| Audio | Microphone, Speaker |
| Alarm | / |
| TFCardSlot | Support |
| RS485 | / |
| Reset | / |
| GENERAL | |
| WorkingEnvironment | -20°C~50°C,Lessthan95%RH |
| Protectiongrade | Indoor |
| PowerSupply | DC12V,PoE(802.3af) |
| PowerConsumption | <6W |
| Dimensions(mm) | / |
| Weight | / |
