-Wi-Fi Two in One Outdoor PT IP Camera
-Max.resolution 5MP@25fps, F1.0 2.8mm+6mm lens
-Dual camera images output for wide range surveillance
-Two-way audio, built in Microphone and Speaker, TF Card slot(Max 512G)
-Full color night vision, Warm lights 25m
-Onvif, Slink, Human detection, Motion detection and Human tracking
-Remote monitoring via phone APP
-IP66

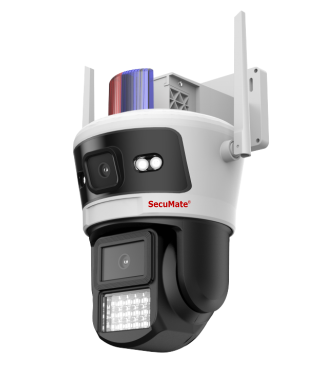

5MP Wi-Fi Network Two in One Black Light Full Color 6 inch Pan/Tilt Camera
MODEL: SE-BS5-G27
-Wi-Fi Two in One 4MP Outdoor Black Lights Full Color PT IP Camera
-Support Pan 355°, Tilt 90°
-IEEE802 11b/g/n, 2.4GHz-2.835GHz
-1/2.8″ Megapixel CMOS
-Up to 5MP(2592×1904)@25fps
-F1.0 2.8mm+6mm dual lens
-Full color night vision, Warm lights 25m
-H.265/H.264, ONVIF, Slink, Human detection, Motion detection and Human tracking
-Two-way audio, built in Microphone and Speaker
-Support TF Card slot up to 512GB
-IP66 waterproof
-DC12V/2A
| Wi-Fi Standard | |
| Wi-Fi Protocol Standard | IEEE 802.11B/G/N |
| Frequency Range | 2.402GHz -2.4835Ghz |
| Channel Bandwidth | 20/40MHZ |
| Safety Control | WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Distance | 100 meters in maximum(without obstacles) |
| Antenna | External 5dB antenna (SMA socket) |
| Camera | |
| Sensor | 1/1.8″ Progressive Scan CMOS |
| Lens | F1.0 2.8mm+6mm lens |
| Lens interface | M12 |
| Focal Length & FOV | Dual images output for wide range view |
| Min. Illumination | Color: 0.0001Lux/F1.0, 0Lux(Warm light ON) |
| Electronic shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Custom |
| Warm light | 25-30m |
| D-WDR | D-WDR (off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast, Sharpness, Saturation, Chroma |
| Humanoid Detection | |
| Detection Quantity | ≤5 people humanoid |
| Humanoid Size | Humanoid Pixel≥40X40 |
| Detection Ratio | ≥99%（meet above requirement） |
| Capture Speed | ≤1s |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Detection Part | People with any posture including half body, head, hand, shoulder |
| Track People | Support |
| Detection Mode | Support static and dynamic humanoid detection |
| Detection method | Support visible light image detection, and near infrared image detection |
| Detection Area | Appointed area, default full-screen |
| Upload Method | Upload it under private protocol |
| Trigger Method | Video trigger |
| Audio & Video Encoding | |
| Video Encode Standard | S.265/H.265/H.264 |
| Encoding Feature | Main stream: 5MP 2592×1902@25fps, 4MP 2560×1440@25fps, 2MP 1920×1080@25fps |
| Sub stream:D1(720*576),VGA(640*360)@25fps | |
| Video Code Rate | Fixed code rate, variable code rate（Main stream code：160Kbps-4000kbps） |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u / 64Kbps |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Connection Protocol | ONVIF, SLINK |
| Preview Video Quantity | 5 pcs |
| Security Mode | Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Capture, email |
| Anomaly Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Character Overlay | Title,time and date overlay, multi-line OSD, OSD color is optional |
| Port | |
| Network Port | RJ45 10M/100M network self-adjustable |
| Antenna Interface | 1 SMA( include a 5dB Antenna) |
| Reset Key | Support |
| TF Card slot | Support, max 512G, Micro SD(SDHC /SDXC) card local-storage |
| Audio | Microphone, Speaker |
| General | |
| Power Supply | DC12V/2A, 5W in Max. |
| Protection | IP66 |
| Size | 6 inch |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0﹪~90﹪ |
