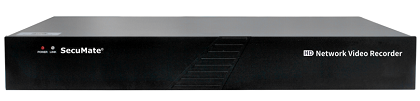

-Up to 16 Channels 4K IP Camera Input-H.265, H.264, MJPEG Codec Decoding-1ch Main Stream Playback or 8ch Sub Stream Playback-HDMI/VGA output up to 4K-ONVIF, SLINK protocol-2x SATA HDDs up to 8TB each-4ch Alarm input/1ch output, 1ch Audio input/1ch output
-Up to16channel 4K/5MP/4MP/3MP/2MP/960P IP camera input-H.265/H.264/MJPEG dual codec decoding -Max 80Mbps incoming bandwidth -1ch Main stream playback or 8ch Sub stream playback-1 HDMI/1 VGA simultaneous video output up to 4K-ONVIF, i8 private protocol -Support 2x SATA HDDs up to 8TB each,2x USB ports, 4ch Alarm input/1ch output, 1ch Audio input/1ch output-Multiple network monitoring: WEB browser, VMS, Smart Phone App(Fseye)
| System | |
| MainProcessor | Quad-coreembeddedprocessor |
| OperatingSystem | EmbeddedLinux |
| Display | |
| Interface | 1HDMI(1HDMIupto3840×2160),1VGA |
| Resolution | 3840×2160,1920×1080,1440×900,1280×1024,1366×768,1024×768 |
| Multi-screenDisplay | 1/4/6/8/9 |
| OSD | Cameratitle,Time,Videoloss,Cameralock,Motiondetection,Recording |
| VideoDetection&Alarm | |
| TriggerEvents | Recording,PTZ,Tour,AlarmOut,VideoPush,Email,FTP,Snapshot,Buzzer,ScreenTips |
| VideoDetection | MotionDetection,MDZones:396(22×18),VideoLossandTampering |
| Alarminput | 4channel |
| RelayOutput | 1channel |
| PlaybackandBackup | |
| SyncPlayback | 1chMainstream,8chSubstream |
| SearchMode | Time/Date,Alarm,MDandRegular |
| PlaybackFunction | Play,Pause,Stop,Rewind,Fastplay,SlowPlay,frameplay,snapshot,FullScreen, |
| Repeat,Shuffle,BackupSelection,15xDigitalZoom,Preciseplay | |
| BackupMode | USBDevice/Network |
| Storage | |
| InternalHDD | 2xSata,upto8TBeach |
| HDDMode | / |
| eSATA | / |
| SAS | / |
| AuxiliaryInterface | |
| USB | 2ports(USB2.0) |
| RS485 | 1Port,forPTZControl |
| VideoandAudio | |
| IPCameraInput | 16Channel4K/5MP/4MP/3MP/2MP/960p |
| Two-wayTalk | 1CH |
| Recording | |
| Compression | H.265/H.264/MJPEG |
| Resolution | 4K/5Mp/4Mp/3Mp/1080P/720P/D1&etc. |
| RecordRate | 80Mbps |
| BitRate | 16kbps~4Mbpsforperchannel |
| RecordMode | Manual,Schedule(Regular,MD,Alarm),Stop |
| RecordInterval | Pre-record:1~30sec,Post-record:10~600sec |
| Network | |
| Interface | 1RJ-45port(10/100/1000Mbps) |
| PoEPort | / |
| NetworkFunction | HTTP,TCP/IP,IPv4/IPv6,UPNP,RTSP,UDP,SMTP,NTP,DHCP,DNS,PPPOE, |
| DDNS,FTP,P2P | |
| SmartPhone | iPhone,iPad,Android |
| Interoperability | ONVIF,SLINKprivateprotocol |
| Electrical | |
| PowerSupply | DC12V/4A |
| PowerConsumption | <10W(withoutHDD) |
