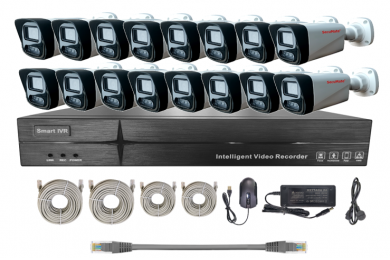

-1x 16ch 4K PoE Port NVR(1x HDD)
-16x 5MP PoE Outdoor Full Color Bullet Camera, Plastic case
-8x 25m Network cables+8x 15m Network cables
-2x DC52V/4.63A Power Adapter
-1x USB Mouse
Truly Plug and Play, Set up within minutes!
No experience required. Just connect the cameras to the NVR using just 1 cable for each IP camera and watch straight away.
The NVR uses POE to power the IP camera therefore you don’t need to use extra cables to supply power, making installations easier and quicker.
Support P2P Phone application, allowing easier home application. Scan the unique and encrypted QR Code(in the kit) to start watching on your mobile phone, tablet etc., straight away.
| IP Camera(SE-FM5P20) | |
| Image Sensor | 1/2.7′ Progressive scan CMOS |
| Effective Pixels | 5MP, 2592×1902 |
| Lens | 3.6mm |
| Dual lights | Warm lights 25m, Infrared 30m |
| Video Parameter | DWDR, Mirror, 3DNR, Sharpness, Brightness |
| Encode | Smart H.265/H.265/H.264 |
| Audio | Built in microphone |
| Protection | IP66, Plastic |
| Power supply | POE, DC12V |
| Smart feature | Human detection |
| NVR (SE-215M16-P8) | |
| Video Input | |
| IP Camera Input | 16 Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 40 Mbps |
| Video Output | |
| HDMI Output | 3840×2160, 1920×1080, 1280×1024, 1024×768 |
| VGA Output | 1920×1080, 1280×1024, 1024×768 |
| Decoding Capacity | 1ch 8MP, 4ch 1080P, 10ch D1 |
| Dual Stream | Support |
| Multi-screen Display | 1/2/4/6/8/9/10/16 |
| Recording Management | |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc., |
| Recording Mode | Timing, Alarm, Timing and Alarm, Alarm include smart detection recording |
| Trigger Events | Human detection, Smart detection(AI Intelligent), Video Loss, Vidoe covering, Alarm input |
| Playback and Backup | |
| Sync Playback | 1ch 4K, 4ch 1080P |
| Search Mode | Normal, Motion, Time /Date, Alarm input, Smart detection(AI Intelligent), Camera capture picture |
| Backup Mode | External USB Device, IMS software |
| Network | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, RTMP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, PPPoE |
| Local Users | 15 users in maximum |
| Smart Phone | iPhone, iPad, Android, IMS Lite |
| Interoperability | SLINK, ONVIF, SDK |
| Storage | |
| HDD | 1 SATA interface |
| Capacity | Up to 16TB for each HDD |
| Interface | |
| Network Interface | 1 RJ-45 (10/100 Mbps) self-adaptive Ethernet port |
| PoE | 4 Ports (IEEE 802.3af), 15.4W |
| Audio I/O | Starndard G.711, 1ch Audio input/output |
| USB | 2 ports (USB 2.0 × 2) |
| HDMI | 1 |
| VGA | 1 |
| Buzzer | Yes, buzzer alarm |
| General | |
| Power Supply | DC52V/4.63A |
| Power Consumption | < 80 W |
| Operating Conditions | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Storage Conditions | Less than 90% RH |
| Dimensions | 210 × 255 × 42mm |
| Net Weight | 1.2 kg (1.98 lb) without HDD |
