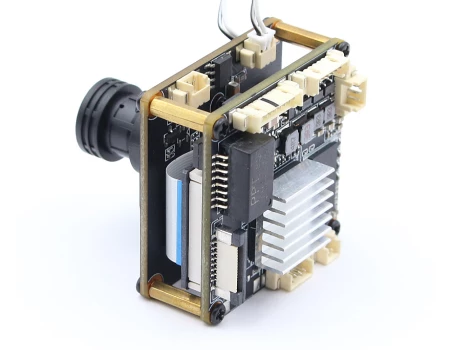

-1/2.9′ 38×38 Dual Board-Sony307+Ingenic T40N, Support Fixed lens-True WDR, 4MP/3MP/2MP/720P@25fps-Humanoid detection, H.265/H.264, Onvif, Slink, Hikvision protocol-Support infrared, Sensor trigger, Warm light, Dual light mode-Support extended USB and 3.3V output, -Support IO board: RS485, reset, TF card slot (up to 512 G), 1ch alarm input, 2ch alarm output, WiFi (option)-All network support RTMP and PTZ
Ingenic AI + H.265 video processor, 22nm DSP, support human detection, with high performance 2MP 1/ 2.9-inchSonyCMOS image sensor, low illumination, Resolution at 4MP/3MP 2048×1536 @ 25fps, 2MP 1920×1080@25fps. Support two-way intercom, voice broadcasting available with audio amplifier board. It support H.265 / H.264H compression format, ROI enhancement, SVC adaptive encoding, adaptive with different bandwidth and card storage. It supports Smart IR, automatically IR light compensation; support digital WDR, 3D noise reduction, glare suppression, backlight compensation, applicable to different monitoring environments. It supports a variety of abnormal detection, such as network disconnection, IP conflict, illegal access, support DC12V/POE power supply, surge protection, electrostatic prevention, lightning protection.
Main Features:
| ◆Thehighestresolutioncanreach4MP(2560×1440@25fps,1920×1080@25fps) |
|
◆Built-inhumanoiddetectionalgorithm,whichisanindependentsystemtocompletethe humanoidrecognitionindependently |
| ◆Humanoiddetectionframerate5FPS,simultaneousdetectionof5people |
| ◆Lowpowerconsumption,lowbitrate,lowlatency |
| ◆H.265high-efficiencycompression,savingbandwidthandstoragespace |
| ◆SupportSmartIRtopreventinfraredoverexposureatnight |
| ◆ICRinfraredfiltertypeautomaticswitching,realizingrealdayandnightmonitoring |
| ◆SupportPOEpowersupplyfunction(optional) |
| ◆ExpandableMicroSDcard(128G)localstorage |
| ◆Support True WDR, 3Ddigitalnoisereduction |
| ◆Supportautomaticelectronicshutterfunction,adapttodifferentmonitoringenvironments |
| ◆Supporttwo-wayvoiceintercom |
| ◆Extensiblesupport1alarminput/2alarmoutput |
| ◆ExtensiblesupportRS485,WIFI,RESETfunction |
| ◆SupportstandardOnvifaccess,supportEmail,NTPservice |
| ◆SupportHTTPSencryptedtransmission |
| ◆Theinitialdeviceisturnedontochangethepasswordtoensurethesecurityofthepassword |
| Videocamera | |
| Master | SONY 307+T40N |
| Imagesensor | 1/2.9″ SonyStarvis 2MPprogressivescanultra-lowillumination CMOS |
| Lens | Fixedfocusmanualfocuslens |
| Dayandnightconversionmode | ICRswitch,automatic/color/blackandwhite/externaltrigger |
| Widedynamic | WDR(off/low/medium/high) |
| Lightboardcontrol | Auto/Manual/Close |
| 3Dnoisereduction | Off/low/medium/high/high |
| Dehaze | Off/low/medium/high |
| Mirroring | Off/Horizontalmirroring/Verticalmirroring/180°rotation |
| Imagesettings | Brightness,contrast,sharpness,saturation,chroma |
| Numberofhumanoiddetections | Candetect≤5humanoidtargetsatthesametime |
| Detecthumanoidsize | Humanoidpixels≥40X40 |
| Humanoiddetectionrate | ≥99%(reachtheaboveconditions) |
| Snapshotresponsespeed | ≤1s |
| Maximumdetectionframerate | 5fps/s |
| Falsedetectionrate | ≤2% |
| Detectionsite | Peopleinanyposture,includinghalf-length,head,andhands |
| Personneltracking | support |
| Detectionform | Supportstatichumanoiddetectionanddynamichumanoiddetection |
| Detectionmethod | Supportvisiblelightimagedetection,supportnearinfraredimagedetection |
| Detectionarea | Supportdesignatedarea,fullscreenbydefault |
| Uploadmethod | Privateprotocolupload |
| Triggermethod | Videotrigger |
| Videocodingstandard | H.265/H.264 |
| Codingcharacteristics | Mainstream:4MP 2560×1440@25fps, 3MP 2048×1536@25fps, 2MP1920x1080@25fps;Substream:D1(720*576),VGA(640*360) |
| Maximumimageresolution | 4MP(2560×1440@25fps) |
| Videobitrate | Fixedbitrate,variablebitrate(mainstream:16Kbps-32Mbps) |
| Videotype | Compositestream/videostream |
| Audiocodingstandard | G.711u/64Kbps |
| Networkprotocol | TCP/IP，UDP，HTTP，HTTPS，DHCP，RTSP，DDNS，NTP，PPPOE，UPNP，SMTP |
| InterfaceProtocol | ONVIF,GB28181(optional) |
| Safemode |
Authorizedusernameandpassword,HTTPSencryption,AESconnectionencryption, RTSPauthentication |
| MotionDetection | Setdetectionarea,multi-levelsensitivitycanbeset |
| Blockalarm | Support1regionalsetting |
| Privacymasking | Support4areablockingblocks |
| Eventlinkage | Snapshot,TFcardvideo,sendEmail,alarmoutputlinkage |
|
Supplementaryrecording ofdisconnectednetork |
support |
| Equipmentanomalydetection | Supportnetworkdisconnection,IPconflict,illegalaccessalarm |
| CharacterOverlay(OSD) | Title,timeanddatesuperimposed,multi-lineOSD,OSDcoloroptional |
| NetworkInterface | RJ4510M/100Mnetworkadaptive |
| Audio | MIClineinput/lineoutput |
| WIFI | Support(expansionboard) |
| Alarminput/Output | 1input(expansionboard),2outputs(expansionboard) |
| resetbutton | Support(expansionboard) |
| RS485interface | Support(expansionboard) |
| TFstorage | Supportupto128G,MicroSD(EXT3/EXT4)cardlocalstorage(expansionboard) |
| powersupply | DC12V/POEoptional(POEoptional) |
| Equipmentsize | 38x38mm |
| Operatingtemperature | -10°C~50°C |
