-VCA Smart Analysis IP Camera module
-6MP (3072×2048)/4MP (2560×1440)/3MP (2304×1296)@25fps
-Support motorized lens
-Support 4 kinds of lights mode: dual light, warm Light , Infrared CDS or Sensor Trigger
-True WDR, 3DNR
-Smart 265, H.265, H.264 compression format
-Support six smart analysis functions
-built-in amplifier board
-Support two-way audio Intercom and voice light broadcast
-Support IO port to extend TF Card, alarm input/output, Reset, RS485

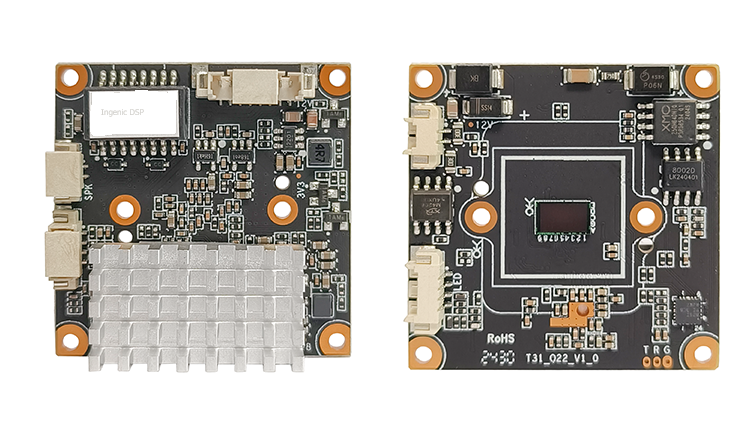

6MP Network VCA Motorized Lens PCBA with IO Port
Model: GC56-41N-MCM60
-1/2.7″ Progressive scan CMOS
-Resolution 6MP(3072*2048@25fps), 5MP(2592*1904@25fps), 4MP(2560*1440@25fps), 3MP(2304*1296@25fps), 2MP(1920*1080@25fps
-Support motorized lens
-Support 4 kinds of light mode: Dual lights, Warm light, Infrared CDS or Sensor trigger,
-Built-in amplifier board;
-Support two-way audio intercom
-Support IO port to extend TF Card, alarm input/output, Reset, RS485
-Built-in human detection algorithm;
-Support area Intrusion, Line-Crossing detection ,loitering, absent alarm, vehicle illegal parking , Vehicle retrograde
-Support human and vehicle detection voice light alert, and draw frame for appointed area to alarm
-Detection frame 5fps, detect 5-10 people at the same time;
-Low consumption, low code stream, low delay;
-S.265 compression format, save bandwidth and storage space;
-Support Smart IR to avoid Infrared over-exposure at night;
-Support ICR auto switch, achieve best result for D&N video;
-Support PoE (option)
-Support 3D DNR and digital WDR;
-Support auto-electronic shuttle to suit different surveillance environment
-Support Alarm Recording Linkage
-Support HTTPS encrypted transmission
-Support Onvif, email, NTP service
-Change the password during initial use to ensure the security of the password
| Camera | |
| Sensor | 1/2.7″ Progressive scan CMOS |
| Lens | Support motorized lens |
| D&N | ICR switch, auto/color/B&W/CDS trigger/ customized time |
| D-WDR | Off/Low/Middle/High |
| IR Led Control | IR/warm/dual light, auto/manual/off, support 0-100 brightness adjust |
| 3D DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip |
| Image Setting | Brightness, contrast, sharpness, saturation, chroma |
| General Events | |
| Motion Detection | Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support full screen / area detection | |
| Linkage setting support: upload mail/voice broadcast alarm/alarm light | |
| Obstruction Alarm | Support day arming/night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Privacy mask | Support Four areas setting |
| VCA | |
| Area Intrusion (Human&Vehicle) |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Line-crossing Detection (Human&Vehicle) |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection line, supports detection directions: A->B | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, motor vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Wandering/Loitering (Human) |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support wandering time setting(10~3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Absent Alarm (Human) |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support absent time setting(10-3600S) | |
| Support at least 1-3 people on duty | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Illegal Parking (Vehicle) |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support illegal parking time setting(10-3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Retrograding (Vehicle) |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 4 points) | |
| Support video stream overlay detection frame | |
| Supports four detection directions, detection line support B->A direction | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Audio & Video Encoding | |
| Standard | S265 / H.265/ H.264 |
| Encoding Feature | Main stream: 6MP(3072*2048@20fps),5MP(2592*1904@30fps) 4MP(2560*1440@30fps),3MP(2304*1296@30fps),2MP(1920*1080@25fps |
| Sub stream:D1(720*576)@25fps,VGA(640*480)@25fps,Q720P(640*360)@25fps | |
| Max Resolution | 6MP 3072*2048 |
| Video Code Rate | Fixed code rate, variable code rate |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u/G.711A 8K 64bit |
| Network Function | |
| Network protocol | TCP/IP，UDP，HTTP，HTTPS，DHCP、PPPoE、HTTP、HTTPS、RTSP、RTMP、DDNS、UPNP、FTP |
| Connection Protocol | Onvif/I8H/HIK Protocol /TST Protocol |
| Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Schedule Linkage | Upload Email/ FTP upload picture, Arming time support day arming/ night arming /customized arming |
| Abnormal Inspection | Support disconnection alarm, IP conflict alarm, illegal access alarm |
| Character Overlay (OSD) | Support time OSD/Title OSD, multi-line OSD (two lines) |
| Main stream font support 12-60pt, sub stream font support 12-36pt, | |
| Port | |
| Network Port | RJ45 10M/100M network self-adaptation |
| Audio | MIC Input/ Output |
| IO Port | to extend TF Card, alarm input/output, Reset, RS485 |
| USB Port | Support USB WiFi/4G module to connect |
| General | |
| Power Supply | DC12V /PoE (option) |
| Size | 38*38mm |
| Working Temperature | -10°C ~ 50°C |
| Working Humidity | 0﹪~90﹪ |
