-Up to 128 channel 4K/5MP/4MP/3MP/2MP/960P IP camera input
-H.265/H.264/MJPEG dual codec decoding
-Max 640Mbps incoming bandwidth
-Support 4ch 4K/5MP/9CH 3MP/16CH 1080P playback
-2x HDMI/2x VGA simultaneous video output up to 4K
-ONVIF, SLINK private protocol
-Support 16x SATA HDDs up to 10TB each, 2x E-SATA,
-Multiple network monitoring: WEB browser, VMS, Smart Phone App(Fseye)
-16ch Alarm input, 8ch Alarm output,
-1ch Audio input/2ch output, 1ch RS485, 2x USB2.0, 1x USB3.0
-Raid0, Raid 1, Raid5, Raid6, Raid 10
Datasheets:
| VIDEO | |
| Network video input | 128CH |
| Network access bandwidth | 640Mbps |
| Video compression | H.265 /H.264 |
| Video output | 2CH VGA（1920×1080@60HZ,1280×1024@60HZ） |
| 2CH HDMI（3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ） | |
| Display mode | Synchronous output, heterosource output |
| System mode | 128 digits +36 preview +16 playback +8 channel intelligence |
| 128 digits +64 preview +16 playback | |
| Video bit rate | 16-16000Kbps |
| Video resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Image display | 1/4/6/8/9/16/25/36/49/64 image display |
| Snapshot mode | Support timing snapshot, manual snapshot, JPEG format |
| Motion detection | Support 396(22*18) surveyed area can be set in every screen and multi level sensitivity adjustable |
| Privacy mask | Support 4 zones |
| intelligent detection |
Support 8ch NVR local intelligent analysis(target counting, left/lost, electronic fence, line crossing detection) |
|
support IPC intelligent functions (target counting, items left/lost, electronic fence, crossing detection, retrograde detection, departure detection) |
|
| AUDIO | |
| Audio compression | G.711u |
| Audio input | 1 CH RCA port (IPC complex audio input) |
| Audio output | 2 CH RCA port |
| Bidirectional talk input | Bidirectional talk, RCA port |
| VIDEO RECORDING AND PLAYBACK | |
| Video frame rate | 1-30fps |
| Record mode | manual/Timing record and alarm record/Timing record/alarm record/Stop record |
| Playback ability | Support 4CH 4K/ 5MP/ 4MP, 9 CH 3MP, 16 CH 1080P record sync playback |
| Playback mode | Instant playback, local record, Playback snapshot, external file playback |
| Record search |
Time, calendar, channel search, event search, (ANR, regular video, motion detection video, alarm video, intelligent detection video) |
| Video playback |
Start time, play/pause, stop, forward, backward, single frame,forward 30 seconds, backward 30 seconds,fast play(1-256X), slow play(1-1/32X)、1/4/9/16 split screen, previous page, next page, backup, capture, show hidden progress bar, full screen,roller amplification time bar precise playback |
| STORAGE AND BACKUP | |
| Storage interface | 16*SATA, 2*E-SATA |
| HDD capacity | Single max.16TB |
| Disk grouping | According video channels to set HDD quantity |
| Disk quota | According video channels to set HDD storage capacity |
| Backup location | Local, network, NAS, IPSAN |
| Array type | Raid0、Raid1、Raid5、Raid6、Raid10、 |
| Hot-backup management | Common mode,Hot backup mode( N+1 hot backup) |
| Backup method | USB mobile hard disk, U disk, network backup |
| ANR | Support Secumate IPC（with TF card）ANR |
| FUNCTION | |
| Network protocol | TCP/IP,HTTP,HTTPS,DDNS,SMTP(SSL),DHCP, PPPoE, UPnP,NTP,P2P |
| Interface protocol | ONVIF、RTSP、 |
| Protocol port | ONVIF/RTSP/HTTP/HTTPS/RTMP port customized |
| Mobile surveillance | Support Apple, Android |
| Internet explorer | Support IE, Chrome, Firefox, Safari |
| Display function |
Channel shortcuts: modify the channel, 3D positioning, display AI intelligent rules and results, capture, voice intercom, channel audio, manual recording, instant playback, video parameters |
|
Desktop display: audio input, volume, alarm information (deployment/removal), P 2P cloud service, network information,Output adjustment, system information, device list (showing whether IPC is online or not, recording type), organizational structure (custom channel classification for quick preview), channel round tour, 1/4/6/8/9/16/25/36/49/64 split screen, open round tour, open linkage preview, file backup、full screen、hide OSD、PTZ control, |
|
| IPC timing | Manual/auto/timing/reconnect timing to IPC timing |
| Alarm linkage | Send email, audible warning（buzzer), alarm on monitor, upload to center, record, snapshot, preview, PTZ linkage |
| Network detection | Flow monitoring, network wireshark, network test |
| User management |
User add, delete, modify, permission management, FSLink Scan the QR code to retrieve the password |
| Auxiliary users(secondary password protection) | |
| Manage IPC | Modify IPC parameters |

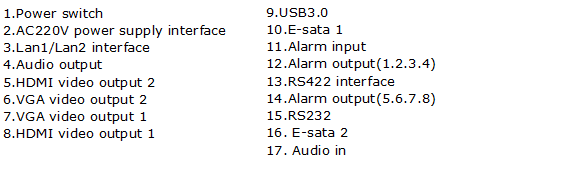

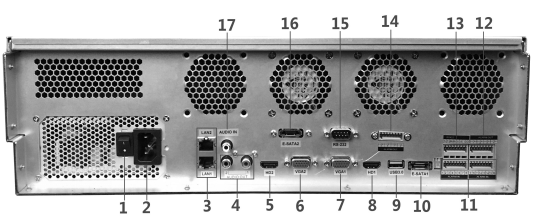

| EXT INTERFACE | |
| Network interface | 2 *RJ45 100M /1000M adaptive Ethernet port |
| POE interface | / |
| Alarm input | 16CH |
| Alarm output | 8CH |
| RS-422 | 1CH |
| USB port | Front panel: 2USB 2.0 Rear panel: 1 USB 3.0 |
| GENERAL | |
| Power supply | AC100～240V,50Hz～60Hz（Power plug specification optional） |
| Power consumption | ≤50W（Without HDD） |
| Operation temperature/ humidity | -10°C ~ 55°C/10﹪-90﹪ |
| Dimension(mm) | 550(L)x442.4(W)x131.8(H)mm |
| Weight/PCS(g) (without HDD) | 14Kg（Without HDD） |
