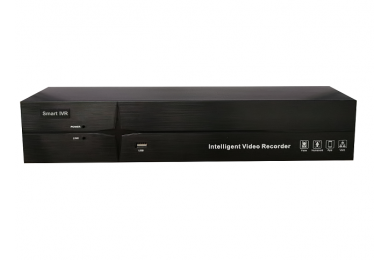

36 Channels 4K Small 1.5U Case 4HDDs NVR
MODEL: SE-748K36
*Up to 36ch IP cameras access, 1.5U Case
*Up to 1-ch@12MP or 4-ch@8MP or 16-ch@2MP or 36-ch@D1 decoding capacity
*VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
*4 SATA hard disk up to 16TB
*2 RJ45 1000M network interface
*Smart analysis: human detection, line crossing, retrograde detection, absent detection, loitering detection, area intrusion, illegal vehicle parking.
*Electronic amplification on preview and playback image
*Support to add IP camera manually or automatically in LAN
*Support channel group cruise
*Smart recording search & playback, alarm capture picture search
*Support USB disk and cloud upgrade, support to upgrade IP camera by USB disk
*Support to configure and maintain IP camera under slink protocol, such as setup up IPC specification, factory reset IP camera, enable or disable all network function of camera
*Support email notification on alarm events
*Support ANR function(need front IP camera support TF card storage)
*Support broadcast function
| Video Input | |
| IP Camera Input | 36 Channel |
| Incoming Bandwidth | 512 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Video Output | |
| HDMI Output | 3840×2160, 1920×1080, 1280×1024, 1024×768 |
| VGA Output | 1920×1080, 1280×1024, 1024×768 |
| Decoding Capacity | 1ch 12MP, 4ch 8MP, 16ch 2MP, 36ch D1 |
| Dual Stream | Support |
| Multi-screen Display | 1/2/4/6/8/9/10/16/25/36 |
| Recording Management | |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc., |
| Recording Mode | Timing, Alarm, Timing and Alarm, Alarm include, smart detection |
| Trigger Events | Human detection, Smart detection(AI Intelligent) Video Loss, Vidoe covering, Alarm input |
| Playback and Backup | |
| Sync Playback | 1ch 12MP, 4ch 8MP, 16ch 2MP |
| Search Mode | Normal, Motion, Time /Date, Alarm input, Smart detection(AI Intelligent), Camera capture picture |
| Backup Mode | External USB Device, IMS software |
| Network | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, RTMP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, PPPoE |
| Local Users | 15 users |
| Smart Phone | iPhone, iPad, Android, IMS Lite |
| Interoperability | SLINK, ONVIF, SDK |
| Storage | |
| HDD | 4 SATA interface |
| Capacity | Up to 16TB for each HDD |
| Interface | |
| Network Interface | 2 RJ-45 (1000 Mbps) self-adaptive Ethernet port |
| PoE | / |
| Audio I/O | HDMI Audio otuput, 1ch Audio input/output |
| USB | 3 ports (USB 2.0 × 3) |
| Alarm | 4ch Input/4ch output |
| HDMI | 1 |
| VGA | 1 |
| Buzzer | Yes, buzzer alarm |
| General | |
| Power Supply | DC12V/8A |
| Power Consumption | < 60 W |
| Operating Conditions | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Storage Conditions | Less than 90% RH |
| Dimensions | 350 × 70× 240 mm |
| Net Weight | 3.5kg without HDD |

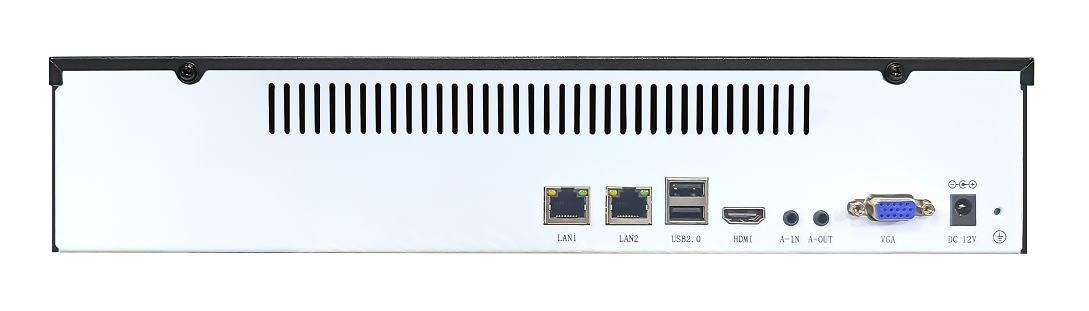

Back Panel:
