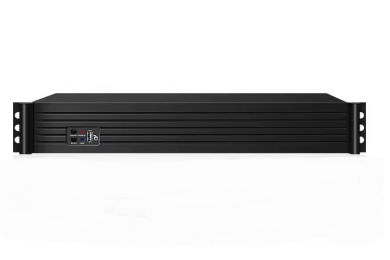

SE-VM1000-2U is a professional embedded video management server for Video Device Management, Video Forwarding and Video Storage, which is applicable to projects needing distributed centralized storage. This server supports to input up to 1000 channels of IPC and NVR, is compatible with SecuMate protocols including Slink, Onvif etc.
Embedded Video Device Management, Video Forwarding and Video Storage
Distributed centralized storage applicable for projects with video input up to 1000channels
Support Live View, Playback, Video Sequencing, E-Map, Two-Way Talk, PTZ Control, GUI Setting, System Configuration, etc.
Supports SecuMate protocols Slink, Onvif etc.
Support MAX 9 HDD (Upto 16TB Each)
Support WEB (B/S), PC Client (C/S) and APP to access at the same time
Video Management (1000 Channels)
Device Access (Up to 1000 Channels)
Media Forwarding (700M Shared with Recording)
Video Recording bandwidth (Max. 700Mbps)
| Server | |
| OS | Embedded |
| Processor | Rockchip |
| Network | 2x10/100/1000Mbps Adaptive Network Ports |
| Memory | 12G |
| OS Disk | 500G SSD, Support Power Loss Protection |
| Network Protocol | RTMP, HLS, TCP/IP, Telnet |
| External Interfaces | |
| HDMI Port | 4x |
| USB | 3x USB2.0 |
| Audio | 1x Audio Connector |
| Ethernet | 2x RJ45 Port |
| System | |
| Basic Composition |
Includes three sets of systems (Operation & Maintenance Deployment System, Management System and Business System) and three Terminals (Web, PC software and App). |
|
Operation & Maintenance Deployment System |
For License Management, Server Setting, Network Setting, Server Restart, Alarm Viewing and Other Functions. |
| Management System | Support Management of Users, Configuration Settings, and Data Statistics. |
| Business System | Video Application Ability Operation and Data Cockpit Statistics. |
| Access Capability | Access Upto 1000 Channels and 700Mbps media forwarding |
| Device Management |
Device Multi-level Group Management,Channel Sorting ManagementAdd & Modify & Delete Device Parameters in batch |
| Alarm Management |
Alarm Output Setting, Modify & Delete & Enquiry & Enable & Disable Alarm Output Setting in batch. Various alarm outputs including Video Popup, Email, Recording, PTZ, etc. |
| Video Management |
Configuration and management of deice and video. Media Distribution, Live View and Platform, Sequencing, Video Wall, E-Map, PTZ Control, Alarm Notification, Two-way Talk, etc. |
| Protocol | Slink, Onvif |
|
User, License & Server Monitoring |
Decentralization Management, Authorized License Quantity Showing, Server Monitoring and Alarm Management |
| Integration Ability | API or SDK for integration with 3rd party platform |
| Statistics | Support System Data Cockpit and Data Statistics. |
| General | |
| Power | 100~240V AC, 550W |
| Temperature & Humidity | Working Temperature: -20°C ~ 60°C |
| Working Humidity: RH 10%~ 90% (non-Condensing) | |
| Storage Humidity: RH 5%~ 95% (non-Condensing) | |
| Dimension | 521.2(L)x431.5(W)x133.2(H)mm |
