Product Characteristics

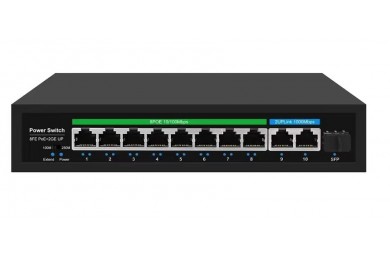

8 1000M PoE ports + 2x 1000M uplink network ports
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
Ethernet port supports 10/100M adaptive
The PoE port automatically turns on the AI mode in VLAN and Extend modes.
Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard Support automatic port flipping (Auto MDI/MDIX)
Zero-configuration feature, automatically provisioned to adaptive devices
Panel indicators monitor working status and help fault analysis
Comes with three-position one-button smart DIP switch, supporting three modes: VLAN, Normal, and Extend.
Support port lightning protection surge: common mode 4KV; electrostatic ESD: air 8KV, contact 6KV
| Port | 1000M PoE | 8 |
| 1000M Cascade RJ45 | 2 | |
| Function | Storage and Forwarding | Support |
| Exchange Content | 1.6G | |
| MAC Address | 2K | |
| Use Environment | Working temperature: 0 ℃ ~ 40 ℃， Storage temperature: -40 ℃ ~ 70 ℃ | |
| Working humidity: 10 ~ 90% RH does not condenseStorage humidity: 5% ~ 90% RH does not condense | ||
| PoE Standard | Standard IEEE802.3af/at single port maximum power 30WSupport overcurrent, overvoltage, short-circuit protectionSupport for High Power PD soft startSupport sequential boot | |
| Input Power Supply | AC input 110-220V, 50/60HZ | |
| Supported Standards & Protocols | IEEE 802.3 Ethernet Media access Control Protocol IEEE 802.3i 10BASE-T EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3af implements power supply for Ethernet devices through Ethernet data cable pairs or devicesIEEE 802.3at implements high power supply for Ethernet devices through Ethernet data cable pairs or devicesIEEE 802.3x flow control | |
| System Mode | OFF (Default working mode)ON (AI mode) | |
| Data Signaling Rate | Ethernet 10Mbps half-duplex, 20Mbps full duplexFast Ethernet 100Mbps half-duplex, 200Mbps full duplex | |
| Network Medium | 100Base-TX: 2 pairs Cat5 or more UTP/STP (≤ 100m)10Base-TX: 2 pairs Cat5 or more UTP/STP (≤ 250m) | |
| Physical Specification | Product size: 190mm*140mm*43mm (L*W*H) | |
