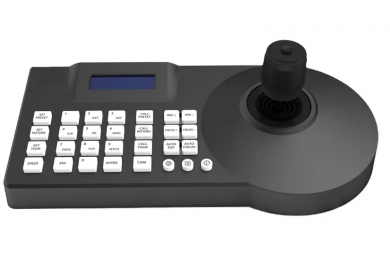

SE-NC501 is a real network and analog PTZ controller. It has strong controllability and effectively solves the current inaccurate and inconvenient mouse-click control of the ball machine. High-end atmosphere, using LCD liquid crystal display to display excellent results, and the characters are delicate and clear. JB3 security keyboard supports standard Onvif protocol and PecloD/P, good compatibility, strong scalability, built-in web server makes the configuration interface simple and clear, very easy to operate, RS485 control bus, can control up to 255 front-end addresses at the same time With 128 devices connected in parallel, it only takes a few steps to achieve perfect control of the network analog dome camera.
-Support network & Analog control mode, enjoys unique IP address and RS485 control bus.
-Support Onvif/ Pelco protocol, achieve the PTZ control of the front-end channel.
-Support adding devices when keyboard offline, also supports the network keyboard to automatically search for devices.
-Max support up to 255 front-end devices in the same network segment.
-Integrated multi-brand network/analog module.
-Support controlling Network PTZ camera functions, such preset, focus, zoom, patrol, track etc.,
-Support IE browser to add and configure front-end equipment parameters
-Imported photoelectric joystick.
-Support for our full range of NVRs
|
RS485 |
One 3.81 pitch terminal, TA, TB |
|
Compatible protocol |
Pelco-d, Pelco-p |
|
Ethernet |
1x Ethernet port、IEEE 802.11b/g/n |
|
Protocol |
Onvif 2.4 |
|
Browser |
Mainstream browsers such as IE, Firefox, Chrome, Safari, etc. |
|
Working temperature |
0℃~55℃ / 14°F~131°F |
|
Working humidity |
20%~80% non-condensing |
|
Storage temperature |
-10℃~60℃ / 14°F~140°F |
|
Storage humidity |
0~90% non-condensing |
|
Power supply |
DC12V-1A/Internally positive and externally negative |
|
Certificate |
CE、FCC、RoHS |
|
Warranty |
One Year |
|
Inner box size |
327*180*126mm (inner dimension) |
|
Carton size |
660*335*186 mm (inner dimension) /5pcs |
|
Net weight |
1300g/pcs |
