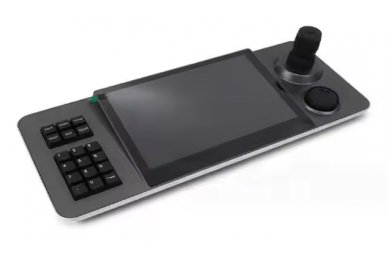

SE-NC801 is a new generation of Android system network touch screen keyboard, with10.1 inch capacitive touch screen, simple and friendly UI design.
It can realize the real-time preview when the keyboard touch screen open, and the image will come to the external display through the HDMI Interface.
Support 1CH H.265 4K@30fps; 1CH H.264 1080P@60fp; 4CH 720P@30fps decoding.
4D Joystick used to PTZ Control and fast positioning target.
Support 10.1-inch capacitive touch screen
Support Android 6.0 operating system
Support H.265/H.264 decoding, maximum 4 screen segmentation
Support viewing images on the touch screen or putting images on the display via HDMI
Support PTZ control, preset, Patrol and track set and call
Support Onvif protocol
Support to add 1024 devices in maximum
Support U disk upgrade, external mouse
Support to control full range NVR and Speed Dome Camera
|
Operating system |
Android 6.0 |
|
screen size |
IPS 10.1 inch Screen，Resolution 1280*800 Capacitive touch screen |
|
Display |
Support HDMI 4K@30fps |
|
Decoding capability |
1.Support h264/h265 2.Max Support h264 1x1080p@60fps 3.Max Support h264 4x720p@30fps 4.Max Support h265 1x4k@30fps |
|
Protocol |
Support Onvif2.4, Support OEM |
|
Function |
1.Supports up to 1024 devices to add 2. Support PTZ Control 3.Support Preset 4.Support Patrol 5.Support Pattern |
|
System settings |
1.Support language settings 2.Support password modification 3.Support U disk upgrade |
|
Power |
Standard 5.5/2.1 Power interface， DC 12V2A±10% |
|
Interfaces |
One RJ45 (Network) One Phoenix Port（RS485） One RS232 One HDMI Output,Version 1.4 One USB2.0 A standard 3.5MM headphone jack |
|
Operation interface |
Support 4D Joystick, Support button |
|
Power consumption |
＜15W： |
|
Standby current |
＜100mA |
|
Mean time between failures |
＞30000h |
|
Working humidity |
10%-90%RH (frost-free) |
|
Working temperature |
-10°C-40°C |
|
Storage temperature |
-40°C-60°C |
