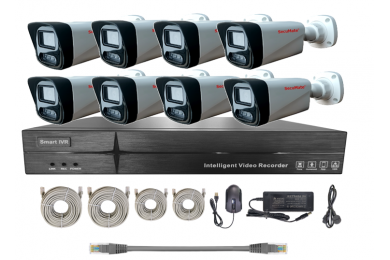

PoE Camera | |
Image Sensor | 1/2.7" Progressive scan CMOS |
Effective Pixels | 2560x 1440, 4MP |
Min. illumination | 0Lux/F1.4 (IR ON) |
Electronic Shutter | Auto/manual (1/25s-1/10000s) |
Day/Night | Auto/Color/ B/W EXT |
Lens | 3.6mm |
Dual lights | Warm light 25m, Infrared IR 30m |
Video Parameter | DWDR, Mirror, 3DNR, Sharpness, Brightness |
Protection | IP66 |
Power supply | POE, DC12V |
NVR | |
Video Input | Up to 8ch 4K IP Camera input |
Video Compression | H.265+/H.265/H.264 |
Video Input Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF |
Video Output | VGA/HDMI sync output, 3840x 2160, 1920×1080,1440×900,1280×1024,1366×768,1024×768,800×600 |
Bit Rate | 16-8000Kbps |
Image Display | 1/4/6/8/9/16 screens |
Snapshoot | Support(BMP) |
Motion Detection | 396(22*18)areas available to setup and multi sensitivity adjustable |
Video Frame Rate | 1-30fps |
Record Mode | Manual/Alarm/MD/Regular |
Playback Synchronic | Support 1CH 5MP/3MP, 4CH 1080P, 8CH sub-stream sync playback |
Search Method | Time, Calendar, Event, Channel |
Video Playback | Start, Stop, Fast play,Slow play, Frame play, Snapshoot, Full screen, Precise playback |
Backup location | Local HDD, Network |
Backup Method | Network, USB storage device, USB recorder |
Network Protocol | TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF |
Connect protocol | Slink, ONVIF |
Smart Phone | iPhone, iPad, Android |
Brower | IE, Chrome, Firefox, Safiri |
Intelligent Detection | Motion detection. Video loss, Video privacy, shelter alarm |
Other | / |
Network Interface | RJ45 10M/100M adaptive Ethernet port |
POE Ports | 8x |
Alarm input | / |
Alarm output | / |
RS-485 | Support |
USB Port | 2*USB2.0 |
e-SATA | / |
HDD | 1 SATA, up to 16TB |
Working Temperature | -20°C ~ 55°C/10﹪-90﹪ |
Power Supply | DC48V/3A, POE |
Power Consumption | NVR:<10W(Without HDD) |
Dimension(mm) | NVR: 300(L)x209(W)x48.5(H)mm IPC: 66(W)*66(H)*166.7(L)mm |
NVR Back Panel:
