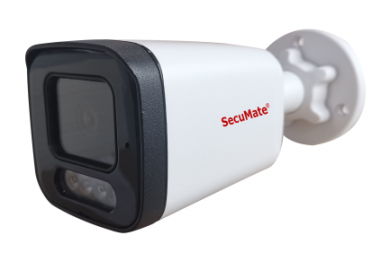

Model: SE-BS5T51
-1/1.8" Progressive Scan CMOS, 5MP(2560*1920)/4MP(2560*1440)@25fps
-F1.0 4mm lens
-Warm lights up to 30 meters
-WDR 140dB
-Video Analysis(Area intrusion, Absent alarm, Loitering, Line crossing detection, Vehicle illegal parking, Retrograde detection)
-Built in Human detection algorithm, carry out human detection indepently
-Detection frame 5fps, detect 5-10 people at the same time
-S.265/H.265 high efficent compression, save bandwidth and storage space
-Support 3DNR and mirror
-Support auto electronic shutter to match different surveillance environment
-Support HTTPS transmission with password
-Support ONVIF, SLINK, Email, NTP service
-Force password revise when initial startup to ensure the passwor security
-Support SECVIEW Mobile Application, Lite IMS and Professional IMS 4.0 central management software
-IP67, DC12V, PoE
Specification:
| Camera | |
| Sensor | 1/1.8" Progressive Scan CMOS |
| Lens | 4mm, F1.0 |
| Lens interface | M12 |
| Focal Length & FOV | 3.6mm, horizontal FOV 95.5°, vertical FOV 50.8°, diagonal FOV 114.5° |
| Min. Illumination | Color: 0.0001Lux/F1.0, AGC ON, B/W: 0Lux(Warm light ON) |
| Electronic shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Custom |
| Warm light | 25-30m |
| WDR | WDR 140dB (off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma |
| General Events | |
| Motion Detection | Support day arming /night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support full screen / area detection | |
| Linkage setting support: upload mail/voice broadcast alarm/alarm light | |
| Obstruction Alarm | Support day arming/night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support one detection area | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Privacy mask | Support four areas setting |
| VCA | |
| Area Intrusion | Support day arming /night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support one detection area, and can draw a multi deformation detection area | |
| (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Line-crossing Detection | Support day arming /night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support one detection line, supports detection directions: A->B | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, motor vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Wandering/Loitering | Support day arming /night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support one detection area, and can draw a multi deformation detection area | |
| (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support wandering time setting(10~3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Absent Alarm | Support day arming /night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support one detection area, and can draw a multi deformation detection area | |
| (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support absent time setting(10-3600S) | |
| Support at least 1-3 people on duty | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Illegal Parking | Support day arming /night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support one detection area, and can draw a multi deformation detection area | |
| (Detection area is consist of 6 points) | |
| Support video stream overlay detection frame | |
| Support illegal parking time setting(10-3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Retrograding | Support day arming /night arming mode; Support to configure the customized arm time by week, |
| with 4 time periods per day | |
| Support one detection area, and can draw a multi deformation detection area | |
| (Detection area is consist of 4 points) | |
| Support video stream overlay detection frame | |
| Supports four detection directions, detection line support B->A direction | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Audio & Video Encoding | |
| Video Encode Standard | Smart H.265/H.265/H.264 |
| Encoding Feature | Main stream: 5MP(2560*1920), 4MP(2560*1440)/ 3MP(2304*1296)25fps |
| Sub stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288) | |
| Video Code Rate | Fixed code rate,variable code rate（Main stream code：160Kbps-4000kbps） |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u /G.711A 64Kbps |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Connection Protocol | ONVIF, SLINK, HIK, TST |
| Preview Video Quantity | 5PCS |
| Security Mode | Authorized user name and password, HTTPS with password, AES connecting with password, |
| RTSP verification | |
Motion Detection    |
Setup detection area, multi-level sensitivity available to setup |
| Obstruction Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Upload email/FTP upload picture, Arming time support day arming/night arming/cutsomized arming |
| Anomaly Inspection | Support network disconnection alarm, IP conflict alarm, illegal access alarm |
| Character Overlay(OSD) | Support time OSD/Title OSD, multi-line OSD (two lines), Main stream font support 12-60pt, sub stream font support 12-36pt |
| Interface | |
| Network Port | RJ45 10M/100M network self-adjustable |
| Alarm | / |
| Audio | Microphone, Speaker |
| TF Card slot | Support, max 512G, Micro SD(SDHC /SDXC) card local-storage |
| Reset | / |
| General | |
| Power Supply | DC12V, 0.6A, max. 6W; PoE: 802.3af, max. 7W |
| Protection | IP67 |
| Size | 155(L)x64.5(W)x64.5(H)mm |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0%~90% |

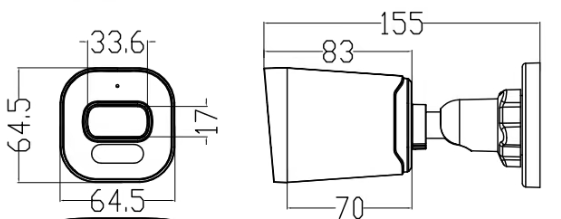

Dimension:
