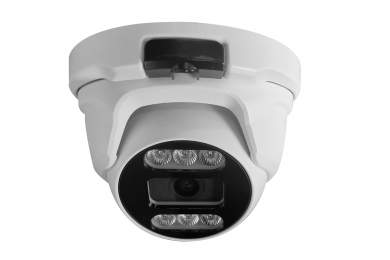

2MP Network Human Detection 30m IR Fixed Dome Camera
MODEL: SE-DM2HD40
-1/2.9' Progressive scan CMOS
-Max resolution 1920x1080@25/30fps, 2MP
-3.6mm fixed lens(2.8mm optional)
-IR distance up to 30m(98.4ft), Smart IR
-True Day&Night (IR Cut Removable)
-S.265/H.265/H.264, ONVIF, Slink
-Human Detection, Microphone
-Digital WDR, 3D Noise reduction, Auto electronic shutter
-12V DC/PoE, Metal, IP67
Specification:
| Camera | |
| Sensor | 1/2.9" Progressive Scan CMOS |
| Lens | 3.6mm(2.8mm optional) |
| Lens interface | M12 |
| Focal Length & FOV | 2.8mm, Horizontal FOV 102.6°, Vertical FOV 56.4°, Diagonal FOV 122° 3.6mm, Horizontal FOV 82.3°, Vertical FOV 44.7°, Diagonal FOV 97.4° |
| Min. Illumination | Color: 0.005Lux/F1.6, AGC ON, B/W: 0Lux(IR LED ON) |
| Electronic shutter | Auto, 1/5 to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Customized |
| IR distance | Up to 30m(98.4ft) |
| D-WDR | D-WDR (off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Adjustment | Brightness, Contrast,Sharpness,Saturation, Chroma |
| Humanoid Detection | |
| Detection Quantity | ≤5 people humanoid |
| Humanoid Size | Humanoid Pixel≥40X40 |
| Detection Ratio | ≥99%（meet above requirement） |
| Capture Speed | ≤1s |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Detection Part | People with any posture including half body, head, hand, shoulder |
| Human Tracking | Support |
| Detection Mode | Support static and dynamic humanoid detection |
| Detection method | Support visible light image detection, and near infrared image detection |
| Detection Area | Appointed area, default full-screen |
| Upload Method | Upload it under private protocol |
| Trigger Method | Video trigger |
| Audio & Video Encoding | |
| Video Encoding | S.265/H.265/H.264 |
| Stream/Frame Rate | Main stream: 2MP 1920x1080@25/30fps |
| Sub stream:D1(720*576),VGA(640*360), 480x360@25/30fps | |
| Bit rate control | CBR/VBR (Main stream bitrate:160kbps-4000kbps, Sub stream bitrate: 128kbps-1500kbps) |
| Stream Type | Video stream; Video&Audio stream |
| Audio Standard | G.711u / 64Kbps |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Connection Protocol | ONVIF, SLINK |
| Max.User Access | 5 pcs |
| Security Mode |
Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
Motion Detection  |
Set detection area, can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Capture, email |
| Anomaly Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Character Overlay | Title,time and date overlay, multi-line OSD, OSD color is optional |
| Port | |
| Network Port | 1 Ethernet(10/100M Base-T) RJ 45 Connector |
| TF Card slot | / |
| Audio input | Microphone built in |
| Audio output | / |
| Alarm in/output | / |
| General | |
| Power Supply | DC12V 0.5A, max. 5W; PoE: IEEE 802.3af, max. 6W |
| Protection | IP67, Metal |
| Size | 106.50(D)*73.5(H)mm |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0﹪~90﹪ |

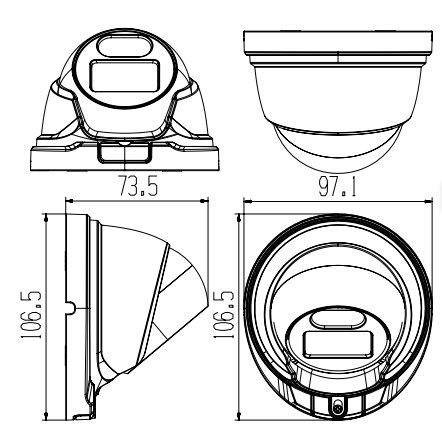

Dimension:
