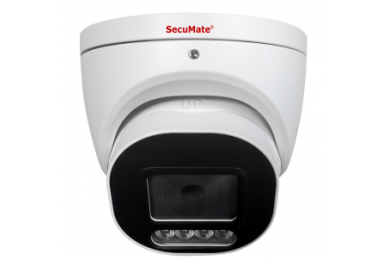

MODEL: SE-DS5HD88M
-1/2.8' Sony Progressive Scan CMOS
-5MP(2592x1904)@25fps, 4MP(2560x1440)@25fps, 3MP(2304x1296)@25fps
-2.7-13.5mm Motorized lens
-Up to 40m IR distance(4x IR Array leds)
-True Day&Night (IR Cut Removable)
-H.265/H.264, ONVIF, Slink
-Human detection
-True WDR(140dB), 3D Noise Deduction, Motion Detection and Privacy zones
-IP67, PoE, DC12V
Specification:
| Camera | |
| Sensor | 1/2.8" SONY Progressive Scan CMOS |
| Lens | 2.7-13.5mm Motorized Zoom |
| Lens interface | M14 |
| Focal Length & FOV | Horizontal FOV 108.1°(W)-30.3°(T), Vertical FOV 56.3°(W)-17.1°(T)°, Diagonal FOV 130.9°(W)-34.8°(T) |
| Min. Illumination | Color: 0.001Lux/F1.6, AGC ON, B/W: 0Lux(IR LED ON) |
| Electronic shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Custom |
| IR distance | 30-40m(4x IR Array leds) |
| WDR | Real WDR 140dB(off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma |
| Humanoid Detection | |
| Detection Quantity | ≤10 people humanoid |
| Humanoid Size | Humanoid Pixel≥40X40 |
| Detection Ratio | ≥99%（meet above requirement） |
| Capture Speed | ≤1s |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Detection Part | People with any posture including half body, head, hand, shoulder |
| Track People | Support |
| Detection Mode | Support static and dynamic humanoid detection |
| Detection method | Support visible light image detection, and near infrared image detection |
| Detection Area | Appointed area, default full-screen |
| Upload Method | Upload it under private protocol |
| Trigger Method | Video trigger |
| Encoding | |
| Encode Standard | S.265/H.265/H.264 |
| Encoding Feature | Main stream: 5MP(2592x1902)/4MP(2560x1440)/3MP(2304x1296)/2MP 1920x1080@25fps |
| Sub stream:D1(720*576),VGA(640*360) | |
| Video Code Rate | Fixed code rate,variable code rate（Main stream code：160Kbps-4000kbps） |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u /G.711a 64Kbps |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Connection Protocol | ONVIF, SLINK |
| Preview Video Quantity | 5 pcs |
| Security Mode |
Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
Motion Detection  |
Set detection area, can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Snapshot, TF card recording,email,alarm output, alarm light,voice broadcast |
| Equipment Anomaly Inspection |
Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Character Overlay（OSD） | Title,time and date overlay, multi-line OSD, OSD color is optional |
| Port | |
| Network Port | RJ45 10M/100M network self-adjustable |
| TF Card slot | Support, max 512G, Micro SD(SDHC /SDXC) card local-storage |
| Audio input | Microphone built in |
| Audio output | / |
| Alarm in/output | / |
| General | |
| Power Supply | DC12V, 0.5A, max. 5W; PoE: 802.3af, max. 6W |
| Protection | IP67 |
| Size | 125.00(W)*120(H)mm |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0﹪~90﹪ |

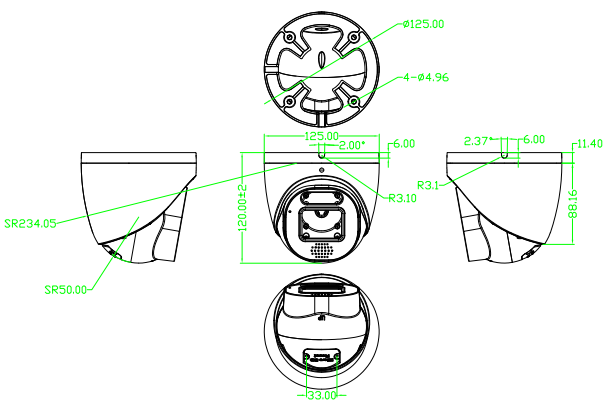

Dimension:
