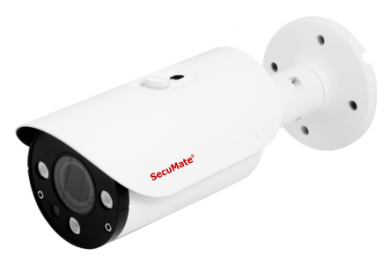

Model: SE-WH5T45-F
*Use the built-in deep learning algorithm of human shape and car shape, suitable for traffic statistics
*Only video analysis for human or vehicle detection, other moving objects will not be affected by detection
*Support target counting, electronic fence, retrograde detection, absent detection
*Support to calculate the statistics of import and export persons and vehicle flow
*Max. resolution 5MP(2592*1944@30fps)
*Support low bit rate, low delay and ROI enhance encoding
*H.265 high effective compression, save bandwidth and storage space
*Support multi-line OSD, OSD color can be adjusted
*High effective IR leds, long service life, IR distance can reach 40-50m
*Support background full image image character, time, device name superposition function
*Support smart IR, Prevent IR overexposure at night
*Support low bit rate, low delay and ROI enhance encoding
*ICR infrared filter plate automatic switch, achieve real D/N monitoring
*Support auto electronic shutter function,adapt different monitoring environment
*Support 3D digital N/R, Real WDR
*Support Onvif access,Support HTTPS encryption transmission
*Support Email, FTP, NTP, DDNS Service
*Support 1ch Alarm input/1ch output, 1ch Audio input/1ch output
*Support Micro SD card (512G) local-storage
*DC12V, POE, IP67
| CAMERA | |
| Image sensor | 1/2.8" SONY 5MP Progressive Scan Exmor CMOS |
| Min.illumination | 0Lux/F1.4(IR led ON), Color: 0.1Lux/F1.4, B/W: 0.05Lux/F1.4 |
| Lens | 2.8-12mm Motorized lens |
| IR Distance | 40-50M(4X IR Array Leds) |
| Light board control | Support intelligent automatic brightness adjustment（Auto/ Manual/Off） |
| Day/ Night | ICR switch, Auto, Color, B/W, ext |
| S/N ratio | ≥50db (AGC OFF) |
| Output | PAL/NTSC adjustable |
| WDR | 140dB WDR(Off/Low/Middle/High) |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation |
| Electronic shutter | Auto/ Manual(1/5~1/100000),FLK |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO ENCODING | |
| Video compression | H.265/H.264 |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: Main stream: 2592x1520 @ 30 fps, 2592x1944 @ 20 fps, sub stream: D1@30fps |
| PAL: Main stream: 2592x1520 @ 25fps, 2592x1944 @ 20fps, sub stream: D1@25fps. | |
| Third Stream | 2592X1944@10fps |
| Max Resolution | 2592x1944 |
| Video bit rate | Constant bit rate, variable bit rate（32Kbps~16Mbps） |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Support input/ output volume gain control |
| ROI | Support 4 zones, multi-stage level |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
| Access protocol | ONVIF, SLINK |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 4 |
| User permission | User add/ modify/ delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support, match with NVR |
| Mobile surveillance | Support IOS, Android |
| Exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System update | Support remote update |
| INTELLIGENT ANALYSIS | |
| Target counting | The deployment time period can be set |
| Type of protection: personnel, vehicles, people and vehicles | |
| Test line can be set up, up to 4 | |
| Statistical methods: A→B/B→A, the number of people increased or decreased | |
| Electronic fence | Setup time can be set |
| Test line can be set up, up to 4 | |
| Detection type: target entry, exit, wander, or intrusion detection | |
| Retrograde detection | Setup time can be set |
| Test line can be set up, up to 4 | |
| Off-site Detection | Setup time can be set |
| Test line can be set up, up to 4 | |
| Departure time is available | |
| Report Statistics (valid with TF card) |
Target count: daily/monthly reports, line charts, bar charts, lists |
| Electronic fencing: lists | |
| Retrograde detection: list | |
| Departure detection: list | |
| INTERFACE | |
| Network interface | RJ45 10M/100M network adaptive |
| Audio | 1CH input/ 1CH output |
| Alarm input | 2CH input |
| Alarm output | 1CH output |
| RS485 | Support |
| Reset | Support |
| TF card | Support Max 512G, Micro SD(SDHC /SDXC) card local-storage |
| GENERAL | |
| Operating temperature | -20°C ~ 55°C |
| Operating humidity | 0﹪-90﹪ |
| Protection grade | IP66, Vandalproof |
| Power supply | DC12V /PoE |
| Power consumption (max) | <8W |
| Dimensions(mm) | 88(W)x95.5(H)x272(L) |
| Weight/PCS(g) | 820g |
Cable Layout:
Dimension:
