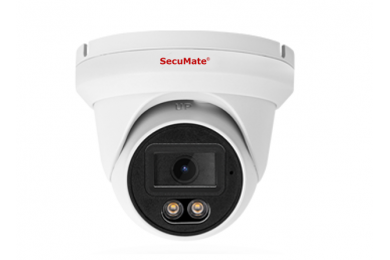

MODEL: SE-QL4HD82
-4MP(2560*1440)/3MP/2MP@25fps
-2.8mm/3.6mm lens
-IR Distance up to 30 meters
-Video Analysis(Area intrusion, Absent alarm, Loitering, Line crossing detection, Vehicle illegal parking, Retrograde detection)
-Built in Human detection algorithm, carry out human detection indepently
-Detection frame 5fps, detect 5-10 people at the same time
-S.265/H.265 high efficent compression, save bandwidth and storage space
-Support 3DNR and mirror
-Support auto electronic shutter to match different surveillance environment
-Support HTTPS transmission with password
-Support ONVIF, SLINK, Email, NTP service
-Force password revise when initial startup to ensure the passwor security
-Support SECVIEW Mobile Application, Lite IMS and Professional IMS 4.0 central management software
-IP66, DC12V, PoE
| Camera | |
| Sensor | 1/2.7" Megapixel CMOS sensor |
| Lens | 2.8mm/3.6mm lens optional |
| IR Distance | 25-30m(4x IR Array leds) |
| DWDR | off/low/middle/high |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma |
| General Events | |
| Motion Detection |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support full screen / area detection | |
| Linkage setting support: upload mail/voice broadcast alarm/alarm light | |
| Obstruction Alarm |
Support day arming/night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection area | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Privacy mask | Support four areas setting |
| VCA | |
| Area Intrusion |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
|
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) |
|
| Support video stream overlay detection frame | |
| Support specified target type detection: human, vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Line-crossing Detection |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
| Support one detection line, supports detection directions: A->B | |
| Support video stream overlay detection frame | |
| Support specified target type detection: human, motor vehicle (non-motor vehicle also can be detected) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Wandering/Loitering |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
|
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) |
|
| Support video stream overlay detection frame | |
| Support wandering time setting(10~3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Absent Alarm |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
|
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) |
|
| Support video stream overlay detection frame | |
| Support absent time setting(10-3600S) | |
| Support at least 1-3 people on duty | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Illegal Parking |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
|
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 6 points) |
|
| Support video stream overlay detection frame | |
| Support illegal parking time setting(10-3600S) | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Vehicle Retrograding |
Support day arming /night arming mode; Support to configure the customized arm time by week, with 4 time periods per day |
|
Support one detection area, and can draw a multi deformation detection area (Detection area is consist of 4 points) |
|
| Support video stream overlay detection frame | |
| Supports four detection directions, detection line support B->A direction | |
| Support linkage actions: Upload mail, Voice broadcast alarm, Light alarm | |
| Audio & Video Encoding | |
| Video Encode Standard | Smart H.265/H.265/H.264 |
| Encoding Feature | Main stream: 4MP(2560*1440)/ 3MP(2304*1296)/2MP(1920*1080)@25fps |
| Sub stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288) | |
| Video Code Rate | Fixed code rate,variable code rate（Main stream code：160Kbps-4000kbps） |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u /G.711A 64Kbps |
| Network Function | |
| Protocol | TCP/IP，UDP，HTTP，HTTPS，DHCP，RTSP，DDNS，NTP，PPPOE，UPNP，SMTP |
| Connection Protocol | ONVIF, SLINK, HIK, TST |
| Preview Video Quantity | 5PCS |
| Security Mode |
Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
Motion Detection |
Setup detection area, multi-level sensitivity available to setup |
| Obstruction Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Upload email/FTP upload picture, Arming time support day arming/night arming/cutsomized arming |
| Equipment Anomaly Inspection |
Support network disconnection alarm, IP conflict alarm, illegal access alarm |
| Character Overlay(OSD) | Support time OSD/Title OSD, multi-line OSD (two lines), Main stream font support 12-60pt, sub stream font support 12-36pt |
| Interface | |
| Network Port | RJ45 10M/100M network self-adjustable |
| Alarm | / |
| Audio | Microphone optional |
| TF Card slot | Support, 512G in max. |
| Reset | / |
| General | |
| Power Supply | DC12V /POE |
| Protection | IP66 |

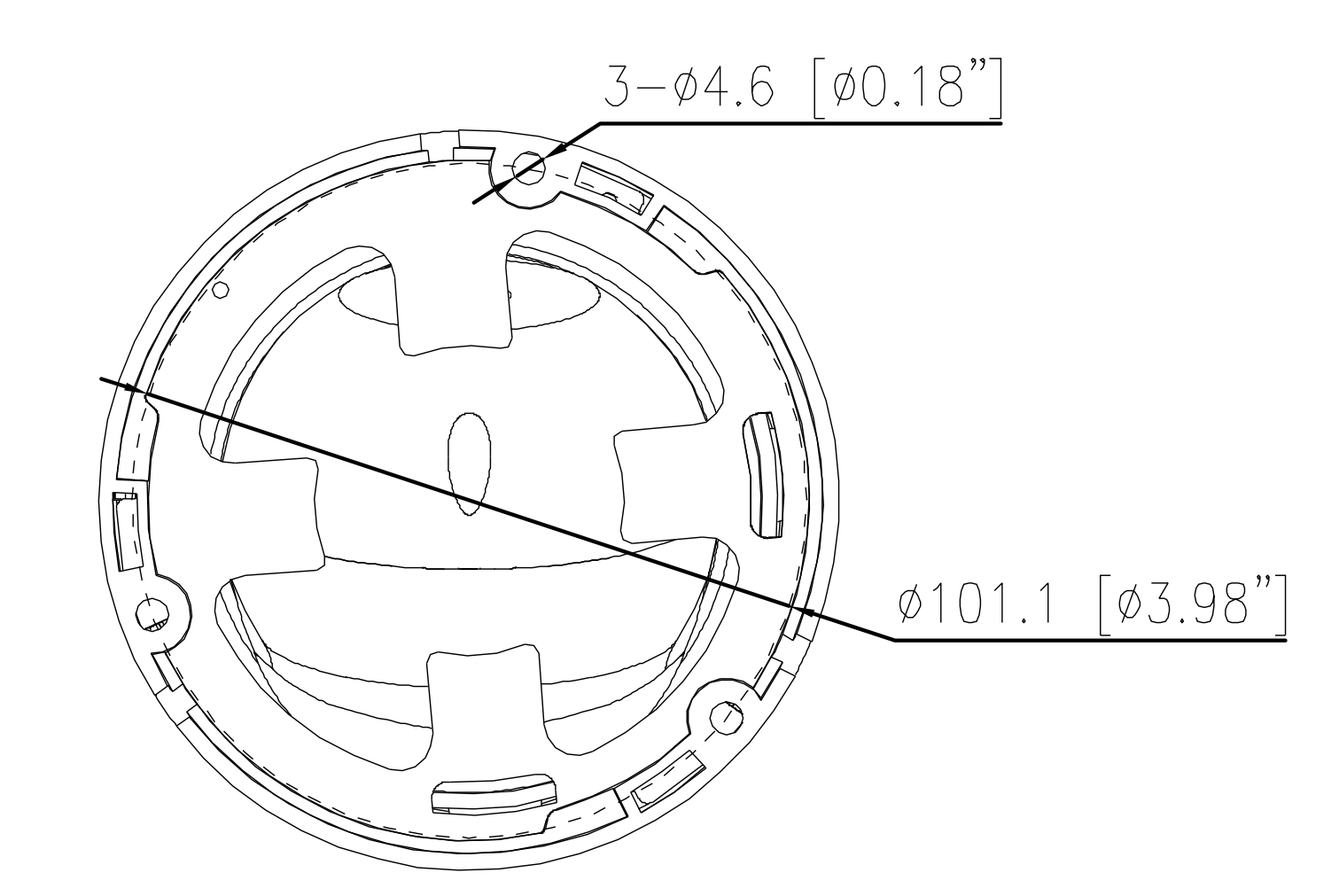

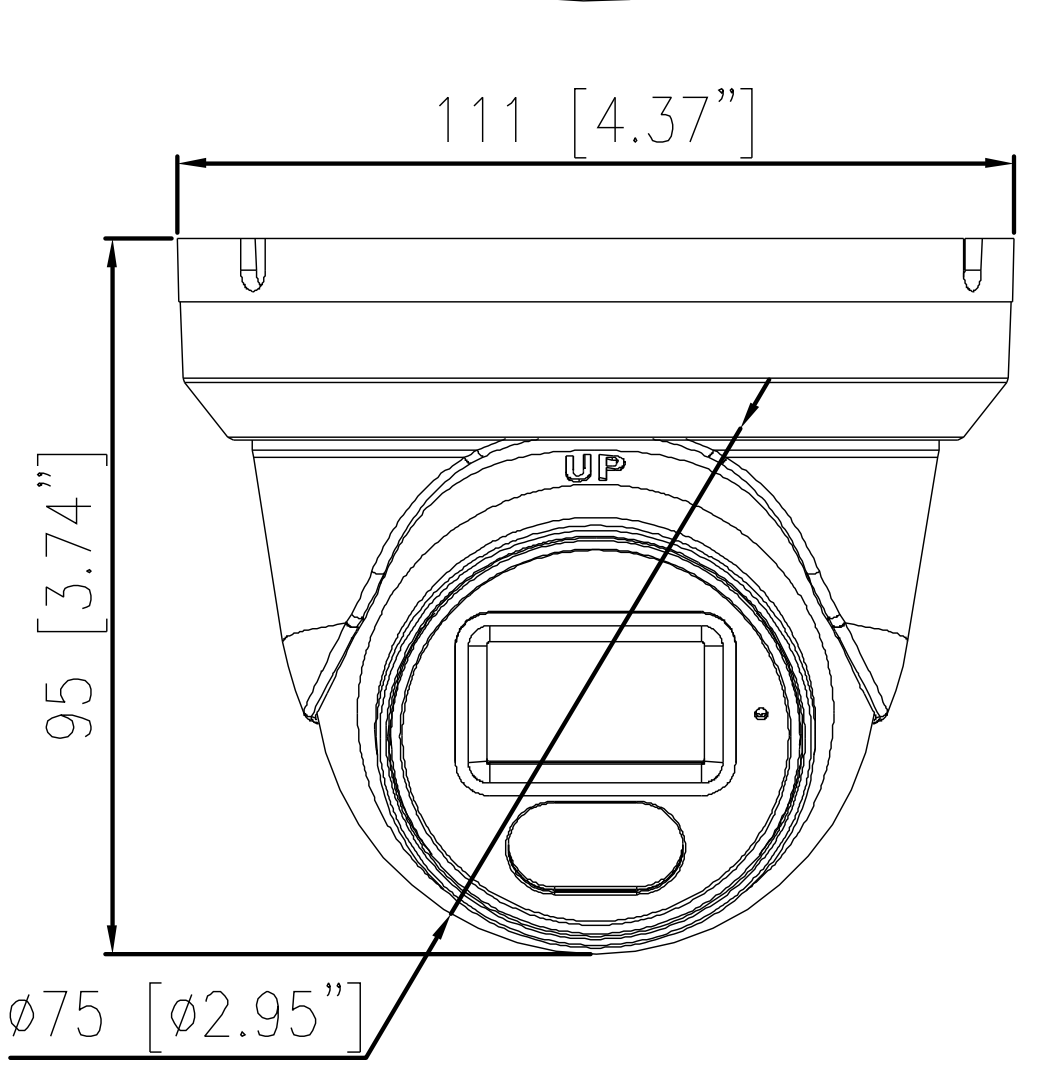

| Size | 114(D)x95(H)mm |
| Working Temperature | -20°C ~ 50°C |
| Working Humidity | 0﹪~90﹪ |
