Model: SE-WH4SF40
1/2.9" CMOS sensor
4MP wide-view resolution 3840 x 1080P (32:9)
170° wide angle view
Low illumination 0.01Lux
Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter,
Digital WDR, Mirror , Defogging
Multiply Style OSD Overlay, Motion Detection, Privacy Mask
RTSP and ONVIF 17.06 compatible with many third-party NVR
H.264/H.265 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
2 pcs Warm light + 2 pcs IR led distance 20-30 meters
2x 3.6mm lens
Built-in Mic and speaker two-way audio
| Model | SE-WH4SF40 |
| Camera | |
| Image Sensor | 2x 1/2.9" Megapixel CMOS |
| Effective Pixels | 4 megapixels |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON) |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC /HLC | Support |
| DNR | 2D/3D DNR |
| Other | AGC, Motion Detection, Privacy Mask, Flip, OSD overlay |
| Encode | |
| Video Standard | H.264/H.265/H.265+ |
| Video Resolution | Main Stream:20fps@3840x1080P, Sub stream: 20fps@1280x360 |
| Video Bit rate | 512Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Yes |
| Built-in Speaker | Yes Two-way audio |
| Smart Detection | Human Detection |
| Dual Lights | |
| Led | 2x warm-light Led + 2x IR Led |
| Distance | 20-30m |
| Lens | |
| Focal length | F1.6 3.6 mm fixed lens |
| FOV | 180° |
| Other Function | |
| PoE，Reset, SD-Slot | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 10 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |

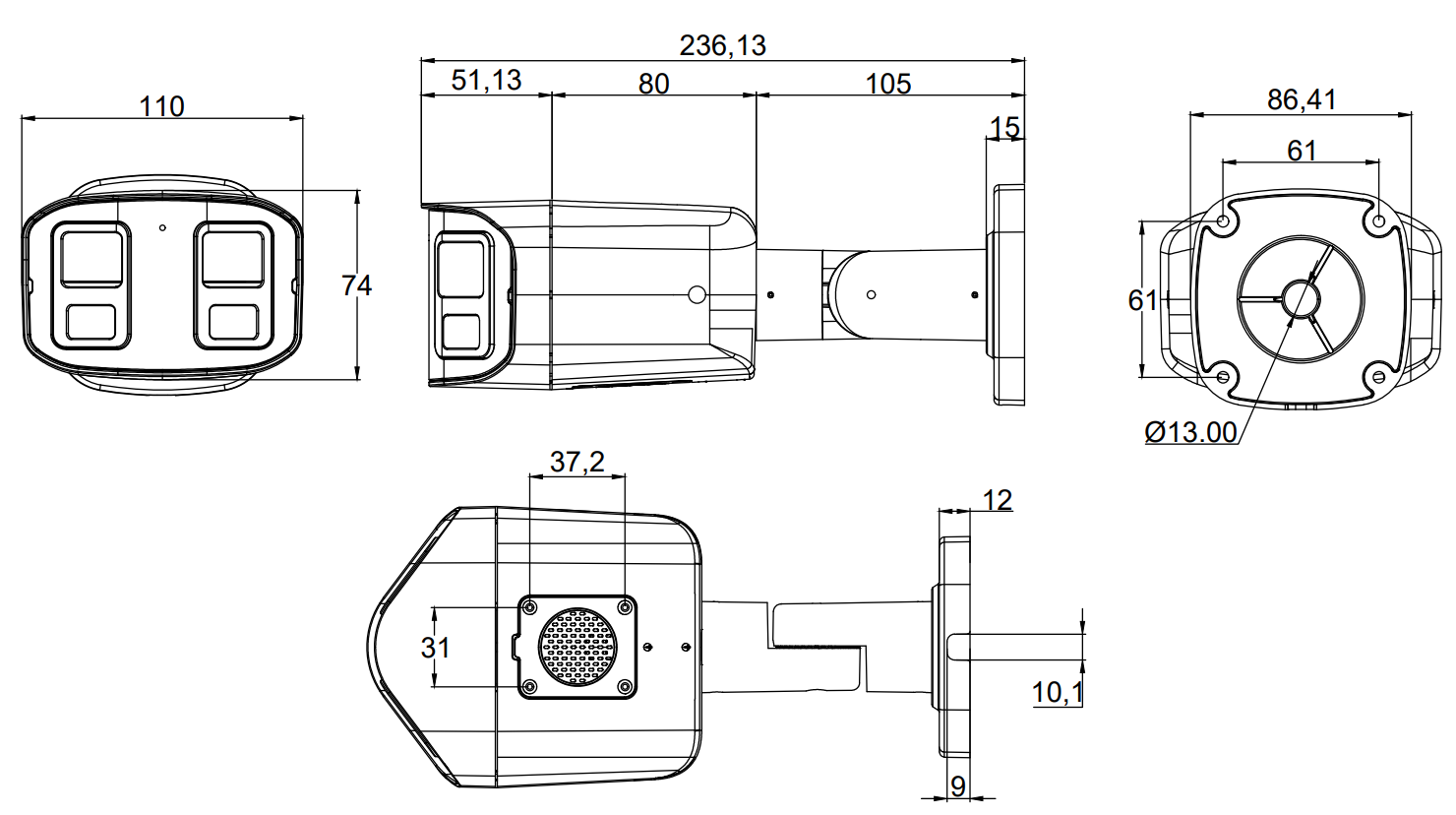

Dimension:
