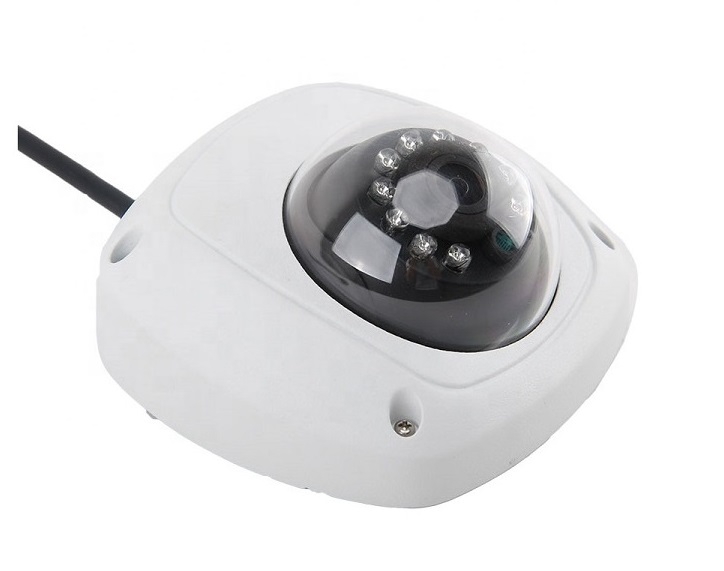

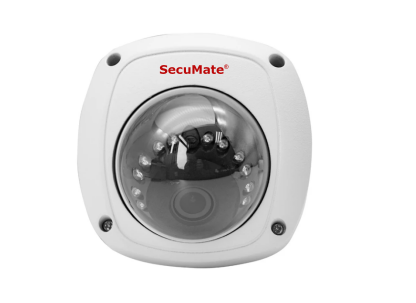

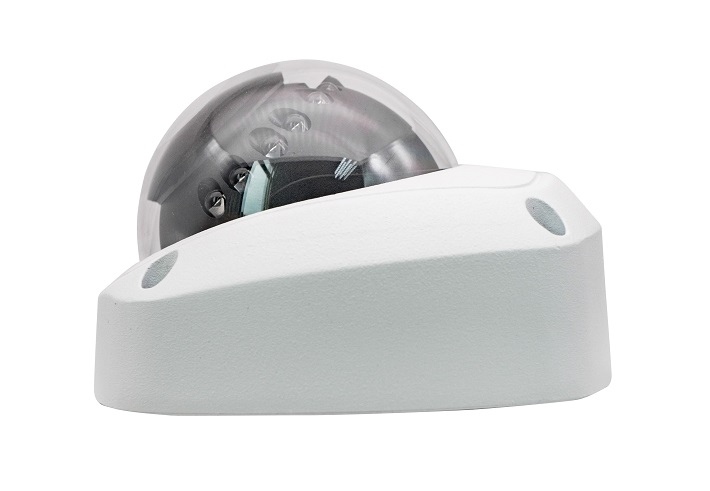

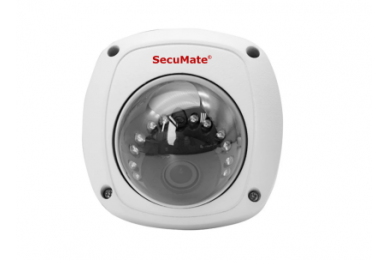

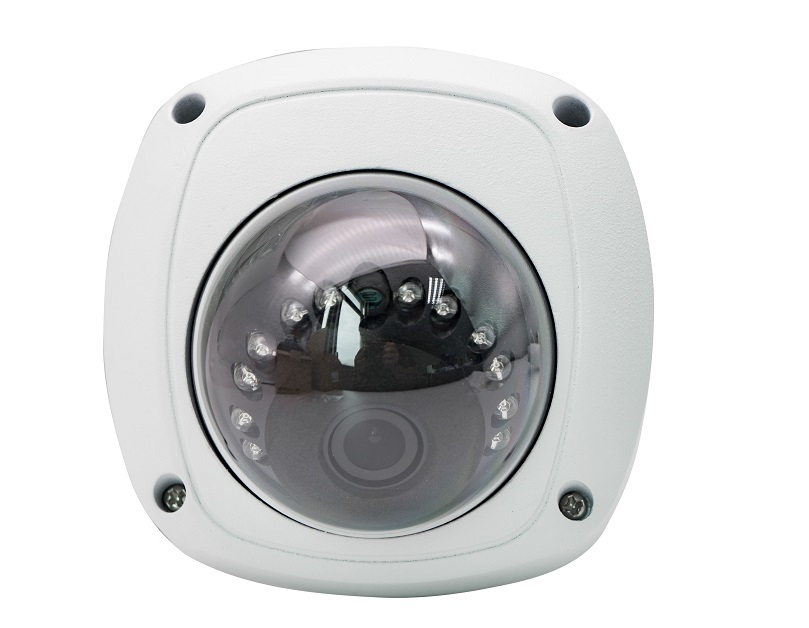

MODEL: SE-EM4HVD50
-1/2.9' Megapixel CMOS
-2560x1440@20fps, 1920x1080@25fps
-3.6mm/2.8mm lens
-Up to 25m IR distance
-True Day&Night (IR Cut Removable)
-H.265/H.264, ONVIF, Slink
-Human detection
-Digital WDR, 3D Noise Deduction, Motion Detection and Privacy zones
-PoE, DC12V, Vandalproof, IP66
| Camera | |
| Image Sensor | 1/2.7' Megapixel CMOS |
| Min.illumination | 0Lux (IR Led ON) |
| Lens | 2.8mm/3.6mm |
| IR Distance | 10-15m |
| Electronic Shutter | Auto/ Manual(1/25~1/10000), FLK |
| Day/ Night | ICR Switch, Auto, Color, B/W, Ext |
| S/N ratio | ≥50db (AGC OFF) |
| Output | PAL/NTSC adjustable |
| WDR | DWDR(Off/ Low/ Middle/ High) |
| Light Board Control | Auto/ Manual/ Off |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation, 270º rotation) |
| Exposure Control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| Encoding | |
| Video compression | H.265/ H.264/ MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding Features | NTSC: Main stream: 2560x1440@20fps, 1920×1080@25fps, Sub-stream: D1@25fps |
| PAL: Main stream: 2560x1440@20fps, 1920×1080@25fps, Sub-stream: D1@25fps | |
| Max. Resolution | 2560x1440 |
| Video bit rate | Constant bit rate, variable bit rate (16kbps~8000kbps) |
| Video Type | Complex stream/ Video stream |
| Audio Compression | / |
| Audio bit rate | / |
| Audio Control | / |
| ROI | / |
| Watermark function | / |
| Network | |
| Network Protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP |
| Access Protocol | ONVIF, SLINK |
| Browser | Support IE, Chrome, Firefox, Safari |
| Preview meanwhile | 3 |
| User Permission | User add/ modify/ delete, permission management |
| Safe Mode | Authorized user name and password, HTTPS encryption and AES link encryption, |
| RTSP verification | |
| Motion Detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering Alarm | 1 zone |
| Privacy Mask | 4 zones |
| VCA | Target Counting, Area Detection, Left/Lost, Line Crossing |
| Event linkage | Email sending |
| Multicast Function | Support |
| ANR | / |
| Mobile Surveillance | IOS, Android |
| Exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color/size can be customized |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System update | Support remote update |
| Interface | |
| Network Interface | RJ45 10M/100M network adaptive |
| Audio | / |
| Alarm | / |
| TF Card Slot | / |
| RS485 | / |
| Reset | / |
| GENERAL | |
| Working Environment | -20°C ~ 50°C, Less than 95% RH |
| Protection grade | Metal, IP66, Vandalproof |
| Power Supply | DC12V, PoE(802.3af) |
| Power Consumption | <6W |
| Dimensions(mm) | / |
| Weight | / |
