Main Features:
◆ Deep learning face recognition algorithm is adopted to extract face feature value comparison and output the optimal picture
◆ Detect, track, score and screen the moving face, and output the optimal face capture graph
◆ Support face recognition automatic image matting output function,
◆ Support face entry and exit mode to automatically screen the optimal face and reduce repeated capture
◆ Face database management: 10,000 faces, which can be imported in batches, leaflets and snapshots
◆ Support background full image image character, time, device name superposition function
◆ Support Weigen export agreement 26, 34
◆ Max. resolution 2MP(1920×1080@30fps)
◆ Support low bit rate, low delay and ROI enhance encoding
◆ H. 265 high effective compression, save bandwidth and storage space
◆ Support multi-line OSD, OSD color can be adjusted
◆ High effective IR leds, long service life, IR distance can reach 20-30m
◆ Support smart IR, Prevent IR overexposure at night
◆ ICR infrared filter plate automatic switch, achieve real D/N monitoring
◆ Support corridor mode, increase the monitoring area in longitudinal strip environment
◆ Support PoE (optional)
◆ Support Micro SD card (128G) local-storage
◆ Support 3D digital N/R,WDR
◆ Support auto electronic shutter function,adapt different monitoring environment
◆ Support various intelligent alarm
◆ Support 2CH alarm input / 2CH alarm output
◆ Support Slink, Onvif access
◆ Support Email, FTP, NTP
◆ Support HTTPS encryption transmission
◆ Original equipment boot to modify password, ensure password security

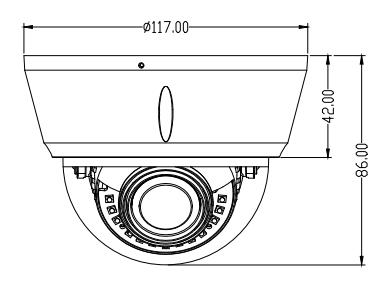

Dimension:
Datasheet:
| CAMERA | |
| Image sensor | 1/2.8" SONY Ultra Starlight progressive scan Exmor CMOS |
| Min.illumination | 0Lux/F1.4（IR on）color: 0.01Lux/F1.4, B/W:0.001Lux/F1.4 |
| IR distance | 20-30M(12x IR Array leds ) |
| Electronic shutter | Auto/ Manual(1/25~1/10000), FLK |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Lens | 2.8-12mm/6-22mm Motorized lens |
| Lens interface | Φ14 |
| Auto IRIS | DC drive |
| S/N ratio | ≥50db (AGC OFF) |
| Output | PAL/NTSC adjustable |
| WDR | WDR(Off/Low/Middle/High) |
| Light board control | Auto/ Manual/Off |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation, 270º rotation) |
| Slow Shutter | / |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO ENCODING | |
| Video compression | H.265/ H.264 |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: main stream: 1920×1080@30fps, sub-stream: D1@30fps PAL: main stream: 1920×1080@25fps, sub-stream: D1@25fps |
| Three stream | NTSC/PAL：1920X1080@10fps, |
| Video bit rate | Constant bit rate, variable bit rate (16kbps~8000kbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | / |
| Audio bit rate | / |
| Audio control | / |
| ROI | Support 4 zones, multi-stage level |
| Watermark function | / |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
| Access protocol | ONVIF,GB28181 (optional) |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 8 |
| User permission | User add/ modify/ delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | / |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support, match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System update | Support remote update |
| Other | / |
| FACE RECOGNITION | |
| Face detection number | Sync detection≤30pcs static faces targets, ≤10pcs dynamic faces targets |
| Recognition face size | Face pixel ≥80 pixels |
| Face database capacity | Support built-in ≤ 10000 faces |
| Posture | Capture within 20 degrees in vertical and 30 degrees in horizontal |
| Shelter | Recognizable with ordinaryglasses and short bangs hair |
| Expression | Recognizable with slight expression |
| Capture/comparison rate | Capture rate≥99%（meet the above conditions）; Recognition rate≥95% |
| Face database query | Whole world query |
| Blurry query | |
| Record query | All（match with SD card） |
| Recognition sucess（match with SD card） | |
| Recognition failure（match with SD card） | |
| Advanced linkage | Whitelist linkage（Alarm arming time can be set） |
| Blacklist linkage（Alarm arming time can be set） | |
| Recognition linkage（Alarm arming time can be set） | |
| Exposure mode | Automatic face exposure |
| Manual face exposure | |
| Response speed | ≤200ms |
| Face repetition remove | Interval capture（Interval time:1~10000ms） |
| Entry capture（Entry time:1~10000ms），capture number（1~3） | |
| Leave capture（Capture number1~3） | |
| Entry and leave capture | |
| Face quality filtering | FaceQualityThreshold（0~10),the higher the value the better the quality of captured images |
| Capture picture quality（1~99) | |
| Max. image size(32~1920pixels） | |
| Face recognition area | Face detection area size adjustment |
| Face shielding area size adjustment | |
| Largest only | Only detect the largest face in the front of the capture/close |
| Max. detection frame rate | 15fps/s |
| Face ID quality score | on/off |
| Scene Graph | on/off |
| Face tracking | Face detection and tracking/off |
| Face dynamic adjustment | Support |
| Image format | Can output face features image, full image, jpg. format image |
| INTERFACE | |
| Network interface | RJ45 10M/100M network adaptive |
| Analog video output | / |
| Audio | / |
| Alarm input | 2CH input |
| Alarm output | 2CH output |
| Reset | Support |
| RS485 | Support |
| TF card | Support Max 128G, Micro SD(SDHC /SDXC) card local-storage |
| Other | / |
| GENERAL | |
| Operating temperature | -20°C ~ 55°C |
| Operating humidity | 0﹪-90﹪ |
| Protection grade | IP66/ IK10 |
| Power supply | DC12V /PoE optional |
| PoE | Optional |
| Power consumption (max) | <8W |
| Dimensions(mm) | 117（D）mm×86(H)mm |
| Weight/PCS(g) | |
