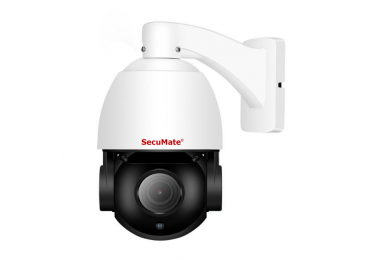

8MP 20x H.265 Mini HD IP Network PTZ Dome Camera
MODEL: SE-WH8D15-K20
Feature:
-1/2.8" Sony Starvis 8Megapixel CMOS sensor
-H.265/H.264, Dual Stream, Max 3840x2160 Resolution
-20x Optical zoom lens
-Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT, D-WDR, Mirror, rotate, Defogging
-Multiply Style OSD Overlay, Motion Detection, Privacy Mask, RTSP and Onvif 17.06 compatible with many third-party NVR such as HIK/Dahua/UNV
-Easy-to-use P2P Cloud service, Support user authentication, video data encryption, Support Alarm Snapshot to Email and FTP
-Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
-Pan/Tilt/Zoom, 360 rotate, 90 auto flip, Horizontal Rotation Speed 0.5°～40°/s, Vertical rotation speed 0.5°～40°/s
-Support 128 presets, 8 cruise, Scanning, Parking support preset, Scan/Cruise
-Lightning protection 4000V
-Auto tracking
-8 pcs Array IR Led, IR distance 100 meters
-DC12V, POE, IP66

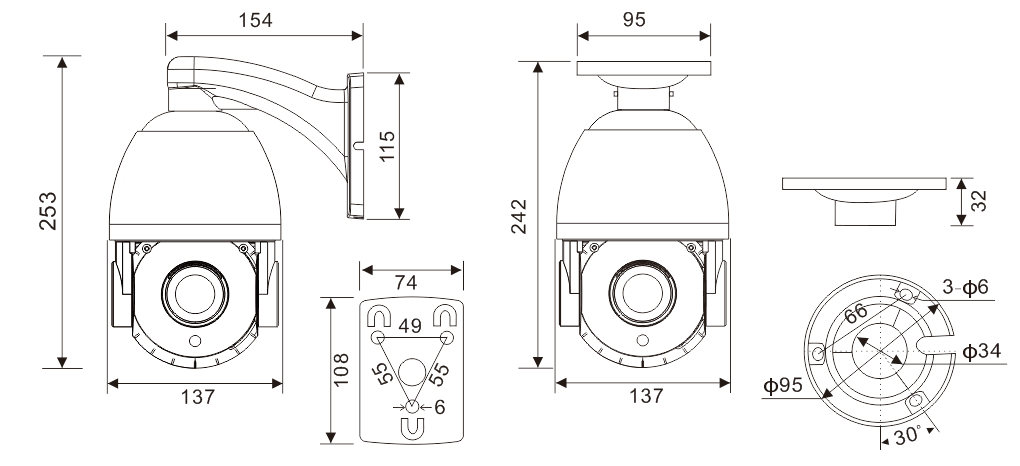

Dimension:
| Model | SE-WH8D15-K20 |
| Camera | |
| Image Sensor | 1/2.8" Sony Starvis 8 Megapixels CMOS |
| Effective Pixels | 3840x2160 |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.265/H.264 |
| Video Resolution | Main Stream: 20fps@8MP(3840x2160),30fps@6MP/5MP/4MP/3MP/1080P/720P,etc. |
| Sub Stream: D1/VGA(640x480)/360P/QVGA@25fps | |
| Video Bitrates | 32Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| OSD Overlay | Title and Time overlay |
| IR Led | |
| IR Led | 8pcs array IR Led (4 near + 4 far) |
| IR Distance | 100 M |
| Lens | |
| Focal length | 4.7-94mm |
| IRIS | F1.6-3.5 |
| View angle | 64 - 2.9 ° |
| Zoom | 20x optical zoom |
| Other Function | |
| Standard | IEEE 802.3af/at , high power |
| Audio | Internal Microphone |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360°; Tilt: 0° ~ 90° |
| Preset Point | 128 |
| Control Speed | Pan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s |
| A-B Scanning | Support |
| Auto Cruising | Support 8 groups |
| Power on Action | Preset/Scan/Cruise |
| Power-off Recovery | Support |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, PoE 48V in |
| Power Supply | 12 VDC ± 10% 2A |
| Power Consumption | < 20 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
| Size | Φ137(mm)×234(mm) |
| Weight | 2.2kg |
