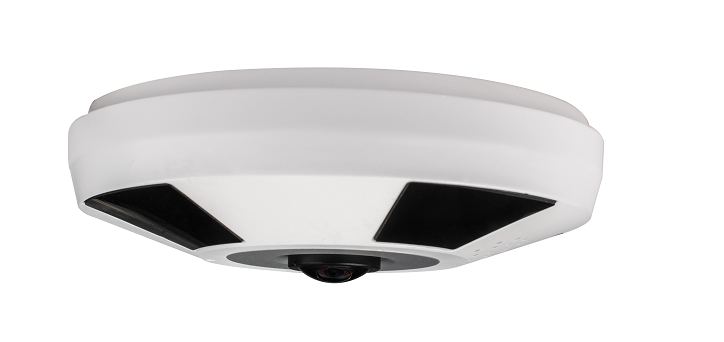

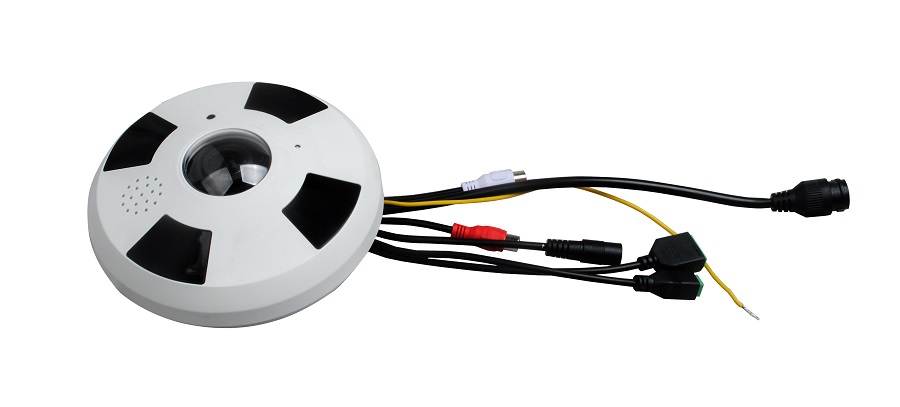

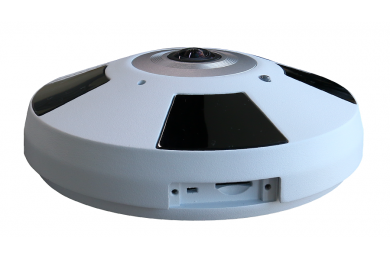

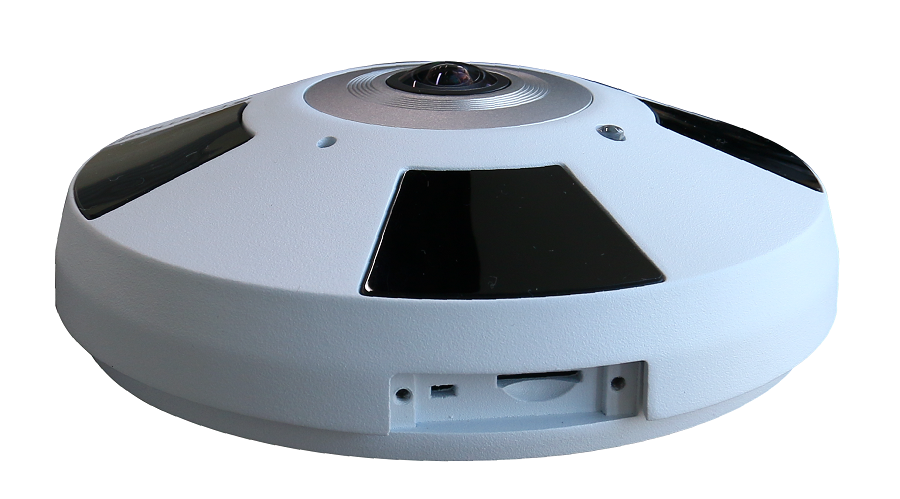

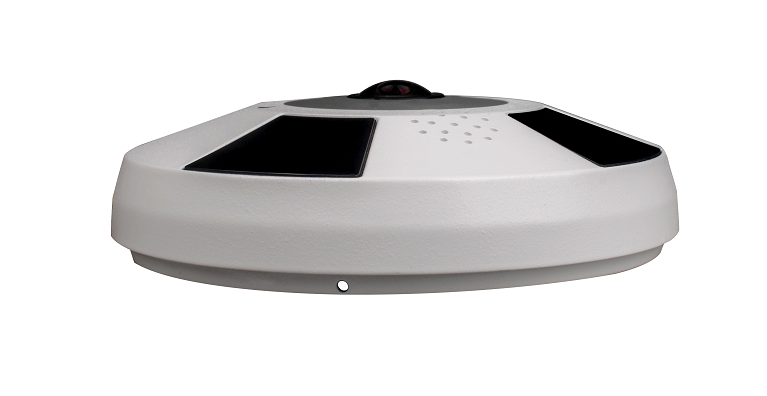

MODEL: SE-WH12B19
-Max resolution 12Mega(4000*3000 @ 15fps)
-Support low bit rate, low delay and ROI enhance coding
-H. 265 high effctive compression, save bandwidth and storage space
-Support multi-line OSD, OSD color can be adjusted
-High effective IR leds, long service life,IR distance can reach 15-20m
-Support Smart IR, prevent IR overexposure at night
-ICR infrared filter plate automatic switch, achieve real D/N monitoring
-Support PoE (optional)
-Support Micro SD card (128G) local storage
-Support 3D digital N/R,DWDR
-Support auto electronic shutter function,adapt different monitoring environment
-Support bidirectional talk
-Support 1CH alarm input / 1CH alarm output
-Support Onvif, Slink
-Support Email, FTP, NTP
-Support HTTPS encryption transmission
-Original equipment boot to modify password, ensure password security
CAMERA | |
Image sensor | 1/1.7" 12MP Progressive Scan CMOS |
Min.illumination | 0Lux(IR ON)Color: 0.1Lux/F1.4, B/W0.05Lux/F1.4 |
IR distance | 15-20M(4xIRⅢ leds) |
Electronic shutter | Auto/ Manual(1/25~1/10000),FLK |
Day/ Night | ICR switch, auto, color, B/W, exit |
Lens | Fish-eye lens |
WDR | DWDR (Off/ Low/ Middle/ High) |
Light board control | Auto/ Manual/ Off |
3D N/R | Off/ Low/ Middle/ High/ Higher |
Defog | Off/ Low/ Middle/ High |
Exposure control | Auto/ Manual |
Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
AUDIO/VIDEO ENCODING | |
Video compression | H.265/ H.264 |
H.265 Encoding | Main Profile |
H.264 Encoding | BaseLine / Main Profile / High Profile |
Encoding features | Main stream fish-eye mode: 12MP(4000*3000) Sub-stream fish-eye mode: D1(720*576) Main stream fish-eye+panoramic mode: Fish-eye: 2048x2048; Panoramic: 2048x2048 Sub-stream fish-eye+panoramic mode: D1(720*576) Main stream fish-eye+3*PTZ mode: Fish-eye: 2048x2048; Panoramic: 1600x1200 Sub-stream fish-eye+3*PTZ mode: D1(720*576) PTZ:VGA(640*480) Main stream fish-eye+4*PTZ mode: Fish-eye:2048*204 PTZ:1600*1200 Sub-stream fish-eye+4*PTZ mode: Fish-eye: /PTZ:VGA(640*480) Main stream fish-eye+ panoramic+3 PTZ mode: Fish-eye:2048*2048 Panoramic: 2MP(2048*1024) PTZ: 1600*1200 Sub-stream fish-eye+ panoramic+3 PTZ mode: Fish-eye:/ Panoramic:D1(720*576) PTZ:VGA(640*480) |
Max. Resolution | 4000*3000 |
Video bit rate | Constant bit rate, variable bit rate(32Kbps~16Mbps) |
Video type | Complex stream/ Video stream |
Audio compression | G.711u, 64Kbps |
Audio control | Support input/output volume gain control |
ROI | Support 4 zones, multi-stage level |
NETWORK | |
Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
Browser | Support IE, Chrome, Firefox, Safari |
Video preview meanwhile | 4 |
User permission | User add/modify/delete, permission management |
Safe mode |
Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
Motion detection | Set detection zone, Multi-level sensitivity can be set |
Tampering alarm | 1 zone |
Privacy Mask | 4 zones |
Intelligent analysis | Target Counting, Area Detection, Left/Lost, Line Crossing |
Event linkage |
Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
Multicast function | Support |
ANR | Support, match with NVR |
Mobile surveillance | Support Apple, Android |
Device exception | Support network disconnected, IP conflict, illegal access alarm |
INTERFACE | |
Network Interface | RJ45 10M/ 100M/ 1000M network adaptive |
Analog video output | 1CH 1.0Vp-p Composite Video Output |
Audio | Line Input/Output |
Alarm input/output | 1CH/1CH |
Reset/RS485 | Support |
TF card | Support Max 128G, Micro SD(SDHC /SDXC) card local-storage |
Microphone/Loudspeaker | Support |
GENERAL | |
Operating temperature | -10°C ~ 50°C |
Operating humidity | 0﹪-90﹪ |
Protection grade | / |
Power supply | AC24V/DC12V /PoE optional |
Power consumption | <15W |
