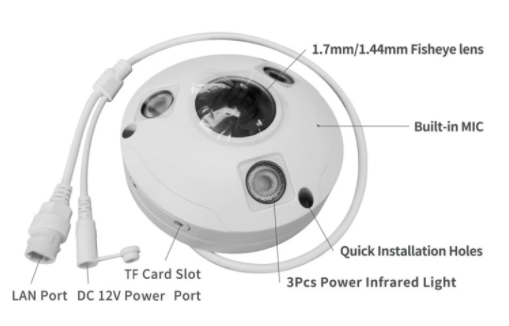

MODEL: SE-DS2HF10-H
-1/2.8' SONY 2 Megapixel CMOS
-1920 x 1080 Resolution, 25fps
-1.7mm Fisheye lens, 180 Degree view angle
-Up to 15m IR distance
-True Day&Night (IR Cut Removable)
-H.265/H.264, ONVIF, Hikvision protocol
-VCA, Intelligent Analysis
-Digital WDR, 3D Noise Deduction, Motion Detection and Privacy zones
-Microphone built in
-PoE, DC12V, IP66, Metal case, Vandalproof
Model | SE-DS2HF10-H |
Camera | |
Image Sensor | 1/2.8'' SONY IMX307 Starvis 2MP CMOS |
System | PAL/NTSC |
Min. illumination: | Color: 0.01lux @(F1.2, AGC ON), 0 Lux with IR ON |
Electronic Shutter | Auto, 1/25s to 1/100,000 s |
Lens | 1.7mm fisheye lens(180 degree view) |
Day/Night Switch | Auto(Passive Mode)/Color/Night/Auto(Active Mode)/Time |
WDR | Digital WDR |
White Balance | Auto/Manual |
DNR | 2D/3D DNR |
AGC/BLC/HLC | Support |
Motion Detection | Support |
Privacy Protection | Support(4 Self-customized Areas) |
Infrared Wavelength | 850nm |
IR Distance | 15-20m/15x IR leds |
Compression | |
Video Compression | H.265/H.264/MJPEG |
Video Bitrates | 32Kbps~12288Kbps(CBR/VBR Selectable) |
Audio Compression | G711-u/G711-a |
Image | |
Max. Image Resolution | 1920x1080@25fps(2MP) |
Main Stream | 50/60Hz: 25fps@1080P/720P |
Sub Stream | 50Hz/60Hz: 25fps@800x488/704x576/640x360/352x288 |
Third Stream | / |
Image Settings | 3DNR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via Client Software, Web Browser or Smartphone App |
Network | |
Network Protocols |
HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search |
General Function | Anti-Flicker, heartbeat, password protection, privacy mask, Watermark |
System Compatibility | ONVIF(2.4+ Media2) |
On-line Viewing | Max. Support 6 Users Simultaneously |
Interface | |
Communication Interface | 1 RJ45 10M/100Mbps Ethernet Interface |
RCA Audio Interface | RCA Audio input/output Interface (Optional function, please reference your product) |
DC Power | DC Power Femate Interface |
TF Card slot | Support(optional function, please feference your product) |
Reset | Support(optional function, please feference your product) |
Microphone built in | Support(optional function, please feference your product) |
General | |
Operating Conditions | -10 °C ~ 60 °C |
10%-90%RH | |
Power Supply | 12 VDC ± 10%/PoE |
Power Consumption | <8W |
Protection | IP66, Vandalproof |
Weight | 0.70 |
Accessories | Junction box |

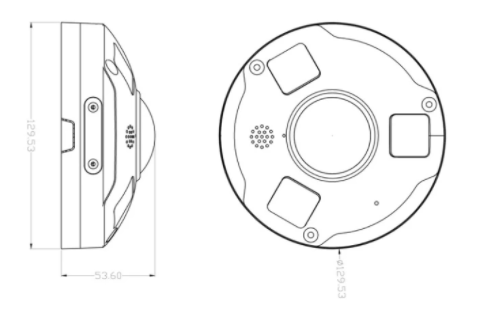

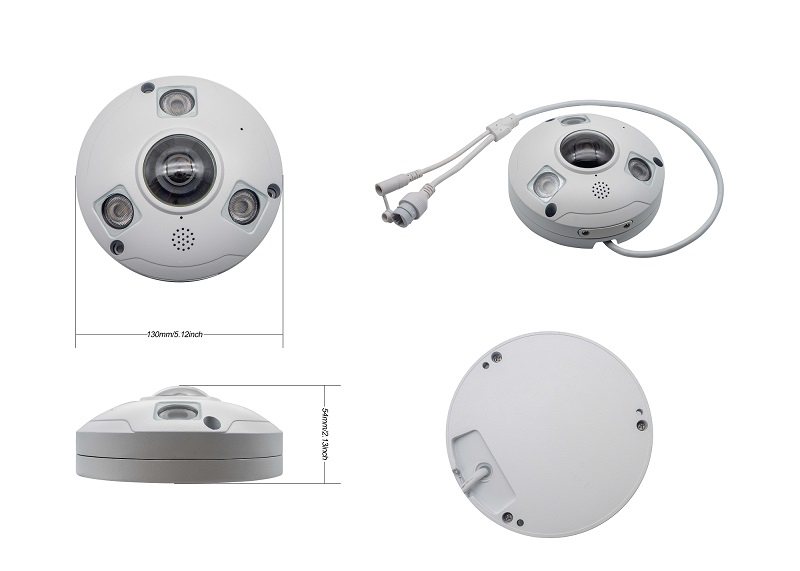

Dimension:
