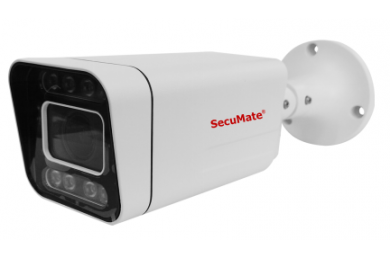

2MP Network Human Detection 50m IR Motorized Bullet Camera
MODEL: SE-EM3T77M
-1/2.9' Progressive scan CMOS
-Max resolution 2304x1296@20fps, 1920x1080@25fps
-2.7-13.5mm Motorized lens
-Up to 50m IR distance(8x IR Array leds)
-True Day&Night (IR Cut Removable)
-H.265/H.264, ONVIF, Slink
-Human detection, Microphone
-Digital WDR, 3D Noise Deduction, Auto electronic shutter
-12V DC/PoE, Metal, IP67
Specification:
| Camera | |
| Sensor | 1/2.9" Progressive Scan CMOS |
| Lens | 2.7-13.5mm Motorized lens |
| Lens interface | M14 |
| Focal Length & FOV | Horizontal FOV 113°(W)-31.4°(T), Vertical FOV 58.4°(W)-17.6°(T)°, Diagonal FOV 138.2°(W)-36°(T) |
| Min. Illumination | Color: 0.005Lux/F1.6, AGC ON, B/W: 0Lux(IR LED ON) |
| Electronic shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥ 52 dB |
| Day/ Night mode | Auto, Day, Night, Custom |
| IR distance | 40-50m(8x IR Array leds) |
| D-WDR | D-WDR (off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
| Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma |
| Humanoid Detection | |
| Detection Quantity | ≤5 people humanoid |
| Humanoid Size | Humanoid Pixel≥40X40 |
| Detection Ratio | ≥99%（meet above requirement） |
| Capture Speed | ≤1s |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Detection Part | People with any posture including half body, head, hand, shoulder |
| Track People | Support |
| Detection Mode | Support static and dynamic humanoid detection |
| Detection method | Support visible light image detection, and near infrared image detection |
| Detection Area | Appointed area, default full-screen |
| Upload Method | Upload it under private protocol |
| Trigger Method | Video trigger |
| Audio & Video Encoding | |
| Video Encode Standard | S.265/H.265/H.264 |
| Encoding Feature | Main stream: 3MP 2304x1296@20fps, 2MP 1920x1080@25fps |
| Sub stream:D1(720*576),VGA(640*360) | |
| Video Code Rate | Fixed code rate,variable code rate（Main stream code：160Kbps-4000kbps） |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u / 64Kbps |
| Network Function | |
| Protocol |
TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Connection Protocol | ONVIF, SLINK |
| Preview Video Quantity | 5 pcs |
| Security Mode |
Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
Motion Detection  |
Set detection area, can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area setting |
| Privacy Mask | Support 4 area privacy mask |
| Schedule Linkage | Capture, email |
| Anomaly Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Character Overlay | Title,time and date overlay, multi-line OSD, OSD color is optional |
| Port | |
| Network Port | RJ45 10M/100M network self-adjustable |
| TF Card slot | Optional, up to 512G |
| Audio input | Microphone built in |
| Audio output | / |
| Alarm in/output | Optional, 1ch in/1ch output |
| General | |
| Power Supply | DC12V, 0.5A, max. 5W; PoE: 802.3af, max. 6W |
| Protection | IP67 |
| Size | 232.8(L)x74.8(W)x72(H) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0﹪~90﹪ |

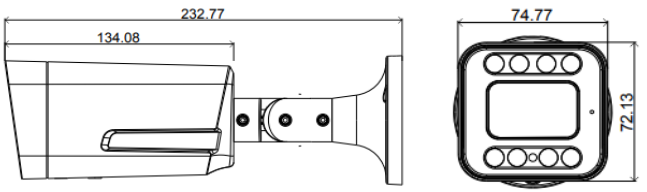

Dimension:
