Model: SE-WH1062FE

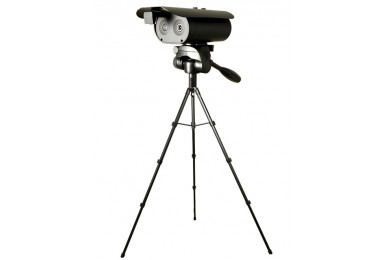

All in One Human Body Temperature Screening Thermal Camera built in Blackbody
Feature:
*Thermal Sensor + Visible camera+Black body All in one Camera
*Long distance, real-time temperature measurement, multi-objectives, synchronous automatic measurement
*Termal imaging body temperature measurement, accuracy up to 0.3℃(built in black body)
*Voice alarm for high temperature, Realtime capture and display high temperature people information
*Visible camera resolution up to 2MP
*Built in Black body to improve measurement accuracy, no need extra blackbody installation
*HDMI output to display software directly, no need extra PC setup
*Support USB mouse setup
*Plug and Play, simple use and easy imployment

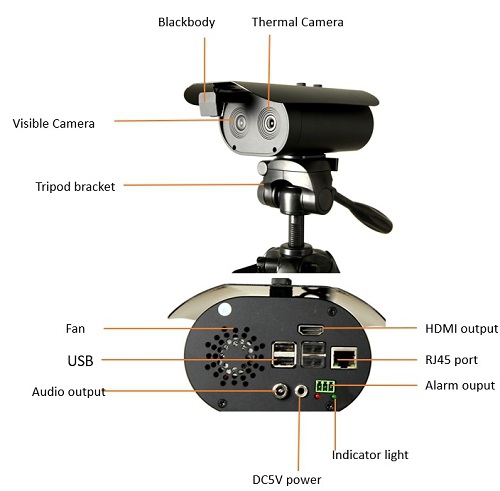

Interface:
| Thermal Camera | |
| Detector Type | Uncooled Focal Plane Arrays |
| Effective Pixels | 160x 120(384×288) |
| Spectral Range | 17μm |
| NETD | < 60mk(@ 25°C, F#=1.0, 300K, 50Hz) |
| Lens | 9.1mm（13mm optional） |
| Angle of view | 40°×30° |
| F NO. | 1.2 |
| Frame rate | 15Hz |
| Visible Camera | |
| Image sensor | 1/2.7" 2 Megapixel CMOS |
| Min. Illumination | Color: 0.01Lux/F1.4, B/W:0.001Lux/F1.4 |
| Electronic shutter | Electronic shutter(1/5~1/100000) |
| Day/ Night | ICR switch, Auto, Color, B/W |
| Lens | 6mm lens |
| S/N ratio | ≥50db (AGC OFF) |
| Max. Resolution | 1920x1080 |
| Black Body | |
| Effective area | 20mm X 30mm |
| Temperature Range | 5℃-50℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Stability | ±（0.1-0.3）℃/hour |
| Effective Emissivity | 0.97±0.02 |
| Temperature Measurement | |
| Measurement distance | 1.5-5m(Suggest 3m) |
| Accuracy | ±0.3℃（with blackbody） |
| Measurement range | 30-50℃ |
| View Angle | 40°C*30°C |
| Detection targets in max | 12 person |
| Measured people per minute | 200 people |
| Calibration | Self-Calibration |
| Face detect | Support for multi-target face detection, temperature measurement |
| Temperature alarm | Support high temperature voice alarm |
| Black Body | |
| Temperature Range |
5℃-50℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Stability | ±（0.1-0.3）℃/hour |
| Effective Emissivity | 0.97±0.02 |
| Main Parameters | |
| SOC | Broadcom BCM2711 |
| CPU | 64bit 1.5GHz 4 Core(28nm) |
| Bluetooth | 5.0 |
| Network Connection | Wifi 802.11AC, Gigabit port |
| Interface | |
| Network interface | Wifi 802.11AC, 1x RJ45 port |
| Audio ouput port | 3.5mm |
| HDMI port | Micro HDMI, Support 4K |
| USB | 1x USB 3.0/2.0 |
| Power supply port | DC5V |
| Indicator light | Support |
| Alarm output | Yes |
| General | |
| Working Temperature | 0°C ~ 40°C |
| Recommended environment | Indoor or Outdoor |
| Power supply | DC5V |
| Power consumption (max) | <15W |
| Installation Method | Stand Floor, Wall, Ceiling mount |
| Dimensions | 230x142.6x88.5mm |
| Weight | 1.5kg |
