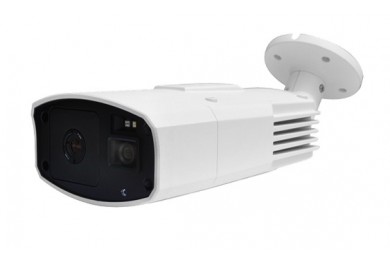

◆Thermal imaging + visible light in one of the camera
◆Thermal imaging body temperature measurement, accuracy up to 0.3℃(with black body)
◆Real-time temperature measurement, multi-objective synchronous automatic measurement
◆Intelligent over-temperature alarm, rapid screening and tracking of temperature anomalies
◆Resolution up to 2MP(1920x1080@30fps)
◆Support low bit rate, low latency, ROI area of interest enhanced coding
◆Support multi-line OSD, font, size, color, position adjustable
◆Support 3D digital noise reduction and WDR
◆Support automatic electronic shutter function, adapt to different monitoring environment
◆Support a variety of intelligent alarm linkage output
◆Support Onvif access
◆Support Email, FTP and NTP services
◆Support HTTPS encrypted transport
◆Change the password when starting the initial equipment to ensure the security of the password
◆Support 2-way alarm input / 1-way alarm output
◆Support Micro SD card (128G) local storage
◆Support PoE power supply
| Thermal Camera | |
| Detector Type | Uncooled LWIR module |
| Effective Pixels | 384×288 |
| Pixel Size | 17μm |
| Spectral Range | 8-14μm |
| NETD | < 60mk(@25°C,F#=1.0, 300K, 50Hz) |
| Lens | 9.1mm（13mm optional） |
| Angle of view | 39°×30° |
| F NO. | 1.2 |
| Frame rate | 40Hz |
| Color Palettes | Black-Heat /White-Heat/Rainbow etc. |
| Visible Camera | |
| Image sensor | 1/2.8"SONY starlight CMOS |
| Min. Illumination | 0Lux/F1.4（IR on）Color:0.01Lux/F1.4, B/W:0.001Lux/F1.4 |
| IR Distance | 5 Meters |
| Electronic shutter | Electronic shutter(1/5~1/100000) |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Lens | 6mm lens |
| Lens interface | M12 |
| S/N ratio | ≥50db (AGC OFF) |
| WDR | WDR(Off/ Low/ Middle/ High) |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| Video compression | H.265/H.264 |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: main stream1920X1080@30fps,, sub-stream: D1@30fps PAL: main stream: 1920X1080@25fpss, sub-stream: D1@25fps |
| Max. Resolution | 1920X1080 |
| Video bit rate | Constant bit rate, variable bit rate (16kbps~8000kbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Support output volume gain control |
| ROI | Support 8 zones, multi-stage level |
| Watermark function | / |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
| Access protocol | ONVIF |
| Browser | Support IE 11 |
| Video preview meanwhile | 2 user |
| User permission | User add/ modify/ delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | face detect、mask detect |
| Event linkage | Snapshot, TF card video, FTP upload or Email, alarm output linkage, preset linkage |
| ANR | Support, match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System update | Support remote update |
| TEMPERATURE MEASUREMENT | |
| Measurement distance | 2-7m(Suggest 3m) |
| Accuracy | ±0.3℃（with blackbody） |
| Measurement range | 30-45℃ |
| Detection target | 30 person |
| Mask detect | Support, alarm prompt without mask |
| Face detect | Support for multi-target face detection, temperature measurement |
| Temperature alarm | Support high temperature alarm |
| Temperature monitor | Support fast easy installation |
| Data upload | Support snapshot image, temperature data upload |
| Face Recognition | |
| Face detection number | To detect 30 faces in maximum |
| Recognition face size | Face pixels≥80 pixels |
| Face Database capacity | 10000 |
| Posture | Capture within 20 degrees in vertical, within 30 degrees in horizontal |
| Shelter | Recognizable with ordinary glasses and short bangs hair |
| Expression | Recognizable with normally slight expression |
| Capture rate/ comparison rate | Capture rate≥99%（meet the above conditions）; comparison rate≥95% |
| Face Query | Full query |
| Blur query | |
| Records Query | Full（Need to install SD card） |
| Recognition Success（Need to install SD card） | |
| Recognition Fail（Need to install SD card） | |
| INTERFACE | |
| Network interface | RJ45 10M/100M network adaptative |
| Audio | Built-in audio output, support External audio input |
| Alarm input | 2CH |
| Alarm output | 1CH |
| Sound and light alarm | Built-in white light lamp and speaker |
| RS485 | Support |
| TF card | Max.support 128G local-storage |
| Reset | Support |
| GENERAL | |
| Operating temperature | -10°C ~ 50°C (Thermometry temperature: 10-32℃) |
| Operating humidity | 0﹪-90﹪ |
| Power supply | DC12V/POE |
| Power consumption (max) | <10W(Typical operating power: 6W) |
| Dimensions(mm) | 315.15mm*48.44mm*71.26mm |
| Weight | 1.66kg |
